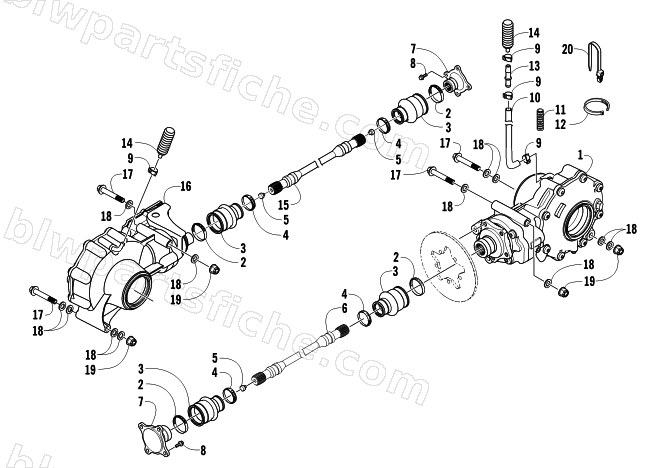

DRIVE TRAIN ASSEMBLY
2011 PROWLER 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-607 | GEARCASE,REAR (4.0-PLR) | 1 | $1,275.95 | |
| 2 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 3 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 4 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 5 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 6 | 1402-272 | SHAFT,PROPELLER-REAR | 1 | $133.95 | |
| 7 | 2402-193 | FLANGE,OUTPUT | 1 | $82.95 | |
| 8 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 9 | 0423-670 | CLAMP,SNAP-9 MM | 1 | $3.44 | |
| 10 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 11 | 0419-392 | CONDUIT,FLEXIBLE-CTL 3' | 1 | $5.37 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 | |
| 14 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 15 | 1402-271 | SHAFT,PROPELLER-FRONT | 1 | $196.95 | |
| 16 | 1502-400 | GEARCASE,FRONT(4.0-PLR ELEC LOCK) | 1 | $2,228.95 | |
| 17 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 18 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 19 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 20 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 |
