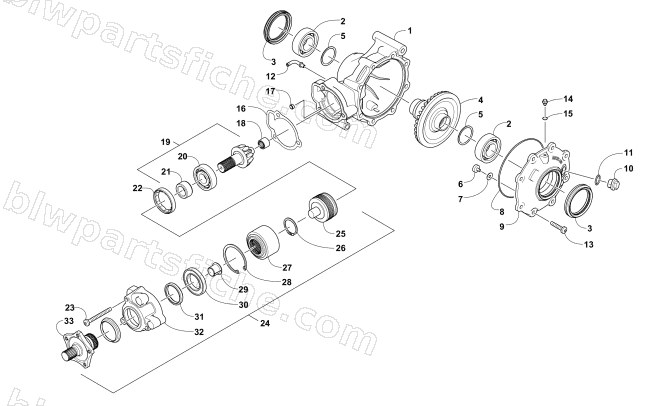

2011 Arctic Cat PROWLER 1000 H2 EFI XTZ — REAR DRIVE GEARCASE ASSEMBLY
2011 PROWLER 1000 H2 EFI XTZ
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1502-404 | GEARCASE,REAR(3.1-H2 PLR-PTL) | 1 | $2,211.95 | |
| 1 | 1502-587 | HOUSING,GEARCASE-MACH | 1 | $283.95 | |
| 2 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 3 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 4 | 1402-033 | GEAR, REAR (34 TOOTH) | 1 | $365.95 | |
| 5 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 5 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 5 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 5 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 5 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 6 | 0402-326 | BUTTON,THRUST | 1 | $6.34 | |
| 7 | 0402-429 | SHIM,6.3X18X1.3 | 1 | $10.97 | |
| 7 | 0402-430 | SHIM,6.3X18X1.4 | 1 | $12.35 | |
| 7 | 0402-431 | SHIM,6.3X18X1.5 | 1 | $12.35 | |
| 7 | 0402-432 | SHIM,6.3X18X1.6 | 1 | $10.97 | |
| 7 | 0402-433 | SHIM,6.3X18X1.7 | 1 | $12.35 | |
| 8 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 9 | 1502-588 | COVER,GEARCASE-REAR MACH | 1 | $126.95 | |
| 10 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 11 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 | |
| 12 | 1402-442 | BARB, 90 DEGREE | 1 | $20.63 | |
| 13 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 14 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 15 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 16 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 17 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 18 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 19 | 0502-784 | PINION-ASSY (11T) | 1 | $212.95 | |
| 20 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 21 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 22 | 0402-357 | COLLAR,LOCKING (M64-1.5 RH) | 1 | $50.95 | |
| 23 | 0423-834 | SCREW,SELF TAP-TSPH M8-1.25 X 78 | 1 | $9.59 | |
| 24 | 1502-563 | HOUSING,INPUT-ASSY (XTZ PTL) | 1 | $1,275.95 | |
| 25 | 1502-564 | CARTRIDGE,CLUTCH | 1 | $599.95 | |
| 26 | 0423-799 | RING,RETAINING,EXTERNAL-PTL | 1 | $27.95 | |
| 27 | 1402-682 | BASKET,CLUTCH | 1 | $100.95 | |
| 28 | 0423-798 | RING,RETAINING,INTERNAL 68MM-PTL | 1 | $23.39 | |
| 29 | 1402-678 | BEARING,FLANGE,20X23X21.5-PTL | 1 | $30.95 | |
| 30 | 1402-677 | BEARING,BALL,16008 C3 40X68X9-PTL | 1 | $49.95 | |
| 31 | 1402-687 | SEAL,DUAL LIP,45X55X7 TC-PTL | 1 | $32.95 | |
| 32 | 1502-565 | HOUSING,INPUT-MACH | 1 | $220.95 |
