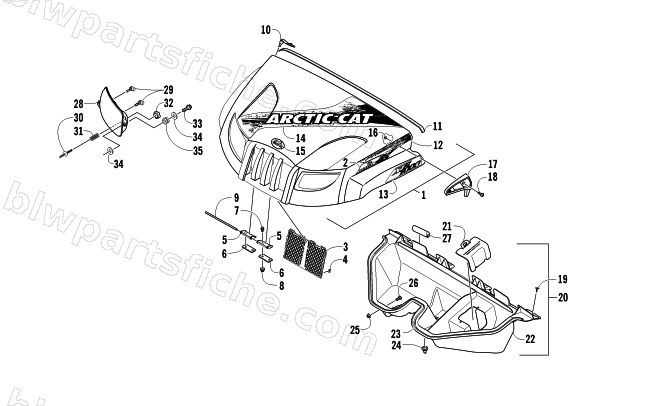

2011 Arctic Cat PROWLER 1000 H2 EFI XTZ — HOOD AND HEADLIGHT ASSEMBLY
2011 PROWLER 1000 H2 EFI XTZ
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-489 | HOOD,N.BLUE-RTD-ASSY | 1 | $945.95 | |
| 1 | 4506-487 | HOOD,S.D.WHITE-RTD-ASSY | 1 | $945.95 | |
| 2 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 2 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 3 | 1406-733 | GRILL, SCREEN-BLACK | 1 | $26.95 | |
| 4 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 5 | 2516-606 | BRACKET,HOOD HINGE-PTD BLK | 1 | $17.87 | |
| 7 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 1406-915 | PIN,HOOD | 1 | $13.73 | |
| 10 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 11 | 0417-013 | SEAL,HOOD | 1 | $6.89 | |
| 12 | 2411-458 | DECAL, SIDE-N BLUE-"PROWLER"-RH | 1 | $42.95 | |
| 12 | 2411-459 | DECAL, SIDE-N BLUE-"PROWLER"-LH | 1 | $42.95 | |
| 12 | 2411-450 | DECAL,GRAPHIC-SIDE RH PRLR SD WHITE | 1 | $42.95 | |
| 12 | 2411-451 | DECAL,GRAPHIC-SIDE LH PRLR SD WHITE | 1 | $42.95 | |
| 13 | 2411-460 | DECAL, SIDE- XTZ-N BLUE-RH | 1 | $20.63 | |
| 13 | 2411-461 | DECAL, SIDE-XTZ-N BLUE-LH | 1 | $20.63 | |
| 13 | 2411-452 | DECAL, SIDE-XTZ-SD WHITE-RH | 1 | $17.87 | |
| 13 | 2411-453 | DECAL, SIDE-XTZ-SD WHITE-LH | 1 | $17.87 | |
| 14 | 2411-456 | DECAL, CREST-N BLUE | 1 | $120.95 | |
| 14 | 2411-448 | DECAL,GRAPHIC-CREST ARCTIC CAT SD WHITE | 1 | $90.95 | |
| 15 | 2411-416 | DECAL, EMBLEM,HOOD CREST | 1 | $90.95 | |
| 16 | 0423-450 | RING,RETAINING-CROSS | 1 | $3.02 | |
| 17 | 2416-512 | LOUVER,HOOD-RH | 1 | $42.95 | |
| 17 | 2416-513 | LOUVER,HOOD-LH | 1 | $42.95 | |
| 18 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 19 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 20 | 4506-037 | BOX,STORAGE-UNDER HOOD (ASSY) | 1 | $244.95 | |
| 21 | 1406-944 | COVER,ACCESS-MASTER CYLINDER | 1 | $26.95 | |
| 22 | 2416-520 | BOX,STORAGE-UNDER HOOD | 1 | $833.95 | |
| 23 | 1406-946 | SEAL STORAGE BOX | 1 | $79.95 | |
| 24 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 25 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 26 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 27 | 0417-014 | TRIM,EDGE-RUBBER-2" | 1 | $3.30 | |
| 28 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 28 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 29 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 30 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 31 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 32 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 33 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 34 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 35 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 |
