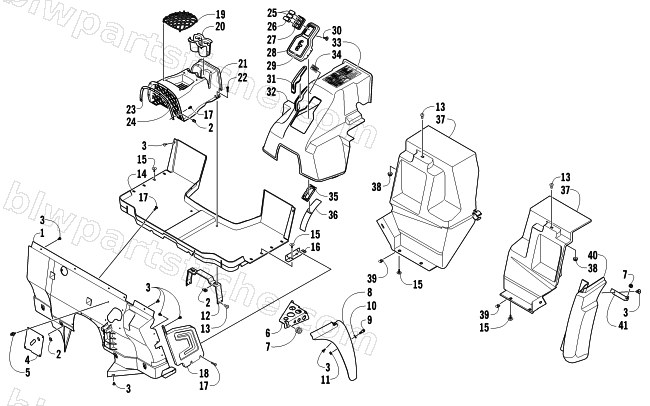

2011 Arctic Cat PROWLER 1000 H2 EFI XTZ — CONSOLE AND FLOOR PANEL ASSEMBLY
2011 PROWLER 1000 H2 EFI XTZ
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-021 | PANEL,INNER FENDER-RTD (XTX/Z) | 1 | $212.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 4 | 0405-427 | BOOT,STEERING-PS (DIE CUT) | 1 | $4.54 | |
| 5 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 6 | 2506-066 | BRACKET,SUPPORT-RH-PTD BLK | 1 | $27.95 | |
| 6 | 2506-067 | BRACKET,SUPPORT-LH-PTD BLK | 1 | $27.95 | |
| 7 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 8 | 4506-056 | FENDER,FRONT RH-N.BLUE-PTD | 1 | $150.95 | |
| 8 | 4506-057 | FENDER,FRONT LH-N.BLUE-PTD | 1 | $150.95 | |
| 8 | 4506-106 | FENDER,FRONT RH-S.D.WHITE-PTD | 1 | $150.95 | |
| 8 | 4506-107 | FENDER,FRONT LH-S.D.WHITE-PTD | 1 | $150.95 | |
| 9 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 12 | 2516-313 | BRACKET,FLOOR SUPPORT-PAINTED | 1 | $42.95 | |
| 13 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 14 | 2416-085 | R/B 5406-460 | 1 | $539.95 | |
| 15 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 16 | 4506-260 | BRACKET,KICK PANEL-RH-PTD BLACK | 1 | $19.25 | |
| 16 | 4506-261 | BRACKET,KICK PANEL-LH-PTD BLACK | 1 | $19.25 | |
| 17 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 18 | 2416-641 | PANEL,SIDE KICK | 1 | $42.95 | |
| 19 | 2416-111 | NET,STORAGE BOX | 1 | $33.95 | |
| 20 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 21 | 2416-081 | TUNNEL,CENTER | 1 | $74.95 | |
| 22 | 8468-670 | SCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLK | 1 | $3.02 | |
| 23 | 0417-019 | FOAM,TUNNEL-LH | 1 | $12.35 | |
| 24 | 0417-018 | FOAM,TUNNEL-RH | 1 | $12.35 | |
| 25 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 26 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 27 | 0409-069 | PANEL,SWITCH MOUNT | 1 | $20.63 | |
| 28 | 1502-520 | GATE,SHIFT-W/DECAL | 1 | $58.95 | |
| 29 | 1411-985 | DECAL,SHIFT GATE | 1 | $20.63 | |
| 30 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 31 | 2406-960 | BOOT,PARK BRAKE | 1 | $30.95 | |
| 32 | 4406-717 | CONSOLE,CENTER-SHIFT,PARK BRAKE,&TUNNEL | 1 | $341.95 | |
| 33 | 2411-511 | DECAL,WARNING-CONSOLE | 1 | $26.95 | |
| 34 | 2411-094 | DECAL, BRAKE RELEASE | 1 | $4.95 | |
| 35 | 1402-793 | GATE,SHIFT SLIDE | 1 | $8.21 | |
| 36 | 1402-794 | SHIFT SLIDE | 1 | $13.73 | |
| 37 | 2416-018 | PANEL,SPLASH-REAR-RH | 1 | $114.95 | |
| 37 | 2416-019 | PANEL,SPLASH-REAR-LH | 1 | $114.95 | |
| 38 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 39 | 0423-466 | CLIP,U-TYPE-TINNERMAN-(D1787-10-4) | 1 | $1.92 | |
| 40 | 4506-040 | FENDER,REAR LWR RH-N.BLUE-PTD | 1 | $129.95 | |
| 40 | 4506-041 | FENDER,REAR LWR LH-N.BLUE-PTD | 1 | $129.95 | |
| 40 | 4506-102 | FENDER,REAR LWR RH-S.D.WHITE-PTD | 1 | $129.95 | |
| 40 | 4506-103 | FENDER,REAR LWR LH-S.D.WHITE-PTD | 1 | $129.95 | |
| 41 | 2516-326 | BRACKET,LOWER FENDER SUPPORT-BLACK | 1 | $13.73 |
