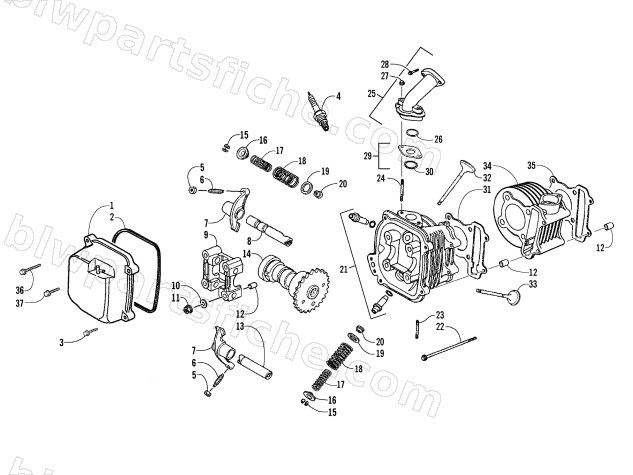

CYLINDER HEAD ASSEMBLY
2011 90 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-292 | COVER COMP HEAD | 1 | $69.95 | |
| 2 | 3304-616 | GASKET HEAD COVER | 1 | $16.49 | |
| 3 | 3303-360 | BOLT FLANGE 6*25 | 1 | $0.81 | |
| 4 | 0217-726 | SPARK PLUG, CR7HSA | 1 | $4.54 | |
| 5 | 3304-026 | NUT TAPPET ADJUSTING | 1 | $1.23 | |
| 6 | 3304-007 | SCREW TAPPET ADJUSTING | 1 | $3.57 | |
| 7 | 3303-031 | ARM VALVE ROCKER | 1 | $66.95 | |
| 8 | 3303-032 | SHAFT COMP IN ROCKER ARM | 1 | $20.63 | |
| 9 | 3303-018 | HOLDER CAM SHAFT **(1) C.2004.07.01 | 1 | $37.95 | |
| 10 | 3304-048 | WASHER 8MM | 1 | $1.23 | |
| 11 | 3303-332 | NUT FLANGE 8MM | 1 | $0.81 | |
| 12 | 3303-342 | PIN DOWEL 10*16 | 1 | $1.64 | |
| 13 | 3303-033 | SHAFT EXH ROCKER ARM | 1 | $10.97 | |
| 14 | 3304-617 | SHAFT COMP CAM | 1 | $150.95 | |
| 15 | 3303-044 | COTTER VALVE | 1 | $10.97 | |
| 16 | 3303-042 | RETAINER VALVE SPRING | 1 | $5.92 | |
| 17 | 3303-041 | SPG VALVE INNER **KBF-9000 C.2004.11.17 | 1 | $6.34 | |
| 18 | 3303-040 | SPG VALVE OUTER **KBF-9000 C.2004.11.17 | 1 | $10.97 | |
| 19 | 3303-043 | SEAT VALVE SPG OUTER | 1 | $2.61 | |
| 20 | 3303-657 | SEAL VALVE STEM | 1 | $13.73 | |
| 21 | 3303-016 | HEAD COMP CYLN | 1 | $445.95 | |
| 22 | 3303-389 | BOLT FLANGE 6*95 | 1 | $1.23 | |
| 23 | 3303-249 | BOLT STUD 8*32 | 1 | $1.23 | |
| 24 | 3303-310 | BOLT STUD 6*50 | 1 | $2.61 | |
| 25 | 3303-059 | PIPE COMP INLET | 1 | $58.95 | |
| 26 | 3303-304 | O-RING 22*2.0 | 1 | $1.64 | |
| 27 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 28 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 29 | 3303-511 | INSULATOR CARB ASSY | 1 | $8.95 | |
| 30 | 3304-596 | O-RING 23X2.4 | 1 | $1.64 | |
| 31 | 3303-019 | GASKET CYLINDER HEAD | 1 | $20.63 | |
| 32 | 3303-038 | VALVE INLET **(0) C.2001.08.01 | 1 | $37.95 | |
| 33 | 3303-039 | VALVE EXHAUST | 1 | $54.95 | |
| 34 | 3303-014 | CYLINDER COMP | 1 | $272.95 | |
| 35 | 3303-015 | GASKET CYLINDER A | 1 | $4.95 | |
| 36 | 3303-363 | R/B 3307-198 | 1 | $0.65 | |
| 37 | 3303-362 | BOLT FLANGE 6*35 | 1 | $0.55 |
