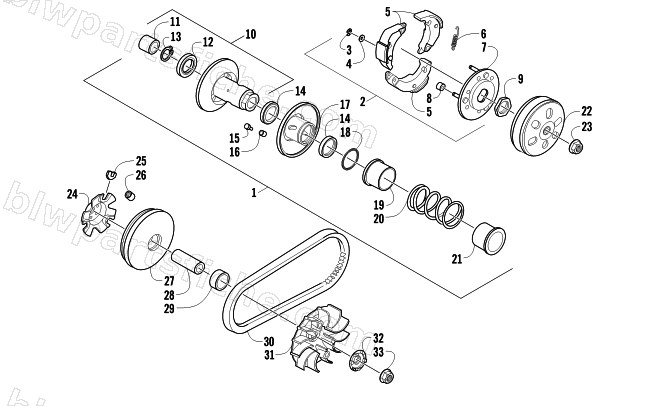

CLUTCH ASSEMBLY
2011 90 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-411 | PULLEY SUB ASSY DRIVEN | 1 | $316.95 | |
| 2 | 3303-090 | PLATE ASSY DRIVE | 1 | $122.95 | |
| 5 | 3303-093 | WEIGHT CLUTCH | 1 | $29.95 | |
| 6 | 3303-092 | SPRING CLUTCH | 1 | $3.57 | |
| 7 | 3303-091 | PLATE COMP DRIVE | 1 | $33.95 | |
| 8 | 3303-094 | RUBBER CLUTCH DAMPER **0000 C.97.07.26 | 1 | $5.37 | |
| 9 | 3304-025 | SPECIAL NUT 28MM | 1 | $5.37 | |
| 10 | 3303-096 | DRIVEN FACE ASSY **0000 C.97.07.26. | 1 | $114.95 | |
| 11 | 3303-294 | BRG NEEDLE 17*25*18 **0040 C.2003.06.02 | 1 | $30.95 | |
| 12 | 3303-291 | BRG BALL RADIAL 15*28*7 | 1 | $37.95 | |
| 13 | 3303-346 | CIR CLIP INTERAL 24MM | 1 | $1.92 | |
| 14 | 3303-299 | OIL SEAL 34*39*3 | 1 | $5.92 | |
| 15 | 3303-098 | PIN ROLLER GUIDE **0000 C.97.07.26. | 1 | $1.92 | |
| 16 | 3303-099 | ROLLER GUIDE **0000 C.97.07.26. | 1 | $3.02 | |
| 17 | 3303-097 | FACE COMP MOVABLE DRIVEN **9000 C.2002. | 1 | $82.95 | |
| 18 | 3304-619 | O-RING PINION CAP | 1 | $4.82 | |
| 19 | 3303-102 | GUIDE SPRING **8500 C.97.07.26. | 1 | $13.73 | |
| 20 | 3303-100 | SPG DRIVE FACE | 1 | $37.95 | |
| 21 | 3303-101 | COLLAR SEAL **0000 C.97.07.26. | 1 | $13.73 | |
| 22 | 3303-082 | CLUTCH OUTER COMP **GW3-9000 | 1 | $58.95 | |
| 23 | 3303-333 | R/B 3307-058 | 1 | $0.95 | |
| 24 | 3303-088 | PLATE RAMP **9000-M1 C.97.07.26. | 1 | $20.63 | |
| 25 | 3303-089 | PIECE SLIDE **(0) C.2003.08.06 | 1 | $3.02 | |
| 26 | 3303-087 | ROLLER COMP WEIGHT 7GR | 1 | $5.92 | |
| 27 | 3303-086 | FACE COMP MOVABLE | 1 | $58.95 | |
| 28 | 3303-409 | BOSS DRIVE FACE (48KM/HR) | 1 | $26.95 | |
| 29 | 3303-410 | BOSS DRIVE FACE (24KM/HR) | 1 | $26.95 | |
| 30 | 3303-095 | BELT DRIVE | 1 | $50.95 | |
| 31 | 3303-083 | FACE DRIVE | 1 | $26.95 | |
| 32 | 3303-116 | KICK STARTER RATCHET **9000 C.97.09.18. | 1 | $37.95 | |
| 33 | 3303-334 | NUT FLANGE 12MM | 1 | $1.23 |
