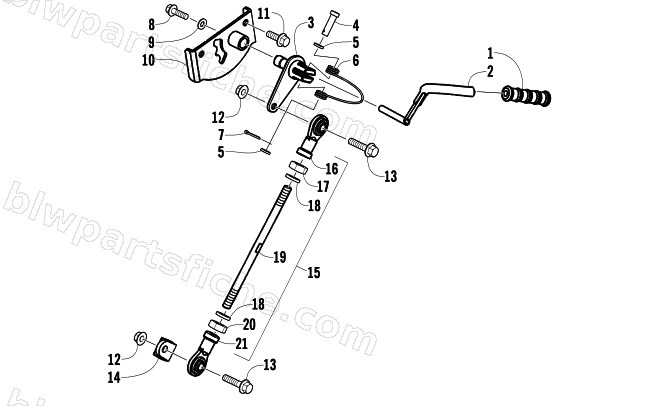

SHIFT LEVER ASSEMBLY
2011 90 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-911 | GRIP,SHIFT LEVER | 1 | $5.65 | |
| 2 | 3305-854 | LEVER,SHIFT | 1 | $16.49 | |
| 3 | 3305-849 | LINK,SHIFT | 1 | $42.95 | |
| 4 | 3303-817 | PIN CHANGE HANDLE | 1 | $2.61 | |
| 5 | 3305-195 | WASHER PLAIN 13MM | 1 | $0.81 | |
| 6 | 3305-853 | SPRING,SHIFT ASSY | 1 | $6.47 | |
| 7 | 3304-142 | PIN SPLIT 2*15 | 1 | $1.37 | |
| 8 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 9 | 3305-852 | WASHER,PLAIN 6MM | 1 | $0.81 | |
| 10 | 3305-851 | BRACKET,SHIFT | 1 | $20.63 | |
| 11 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 12 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 13 | 3304-176 | BOLT FLANGE 8*28 | 1 | $1.50 | |
| 14 | 3305-825 | BRACKET,SHIFT GUIDE | 1 | $6.47 | |
| 15 | 3305-847 | ROD,ASSY SHIFT | 1 | $90.95 |
