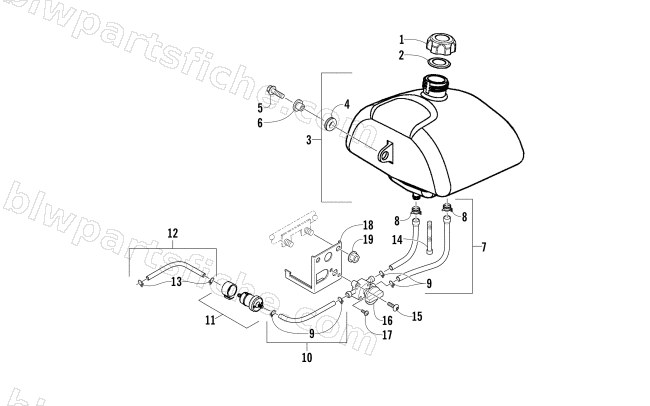

GAS TANK ASSEMBLY
2011 90 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-003 | CAP ASSY FUEL FILLER | 1 | $13.73 | |
| 2 | 3303-068 | SEAL, GAS TANK CAP | 1 | $2.61 | |
| 3 | 3305-488 | TANK COMP, FUEL | 1 | $339.95 | |
| 4 | 3303-406 | RUBBER FUEL TANK | 1 | $3.57 | |
| 5 | 3303-383 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 6 | 3303-226 | COLLAR FR FENDER | 1 | $1.64 | |
| 7 | 3305-489 | TUBE ASSY,FUEL TANK | 1 | $20.63 | |
| 8 | 3305-523 | CLAMP D13 TUBE | 1 | $1.92 | |
| 9 | 3303-349 | CLIP B10 TUBE | 1 | $0.95 | |
| 10 | 3305-521 | TUBE ASSY FUEL | 1 | $12.35 | |
| 11 | 3303-699 | STRAINER ASSY FUEL | 1 | $20.63 | |
| 12 | 3305-522 | TUBE ASSY FUEL | 1 | $17.87 | |
| 13 | 3303-348 | CLIP B8 TUBE | 1 | $0.95 | |
| 14 | 3303-058 | SCREEN FUEL STRAINER | 1 | $4.82 | |
| 15 | 3303-316 | SCREW PAN 5*16 | 1 | $1.09 | |
| 16 | 3303-057 | R/B 3307-093 | 1 | $24.95 | |
| 17 | 3304-120 | SCREW FLAT 5*25 | 1 | $1.09 | |
| 18 | 3305-294 | STAY FUEL COCK | 1 | $11.95 | |
| 19 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 |
