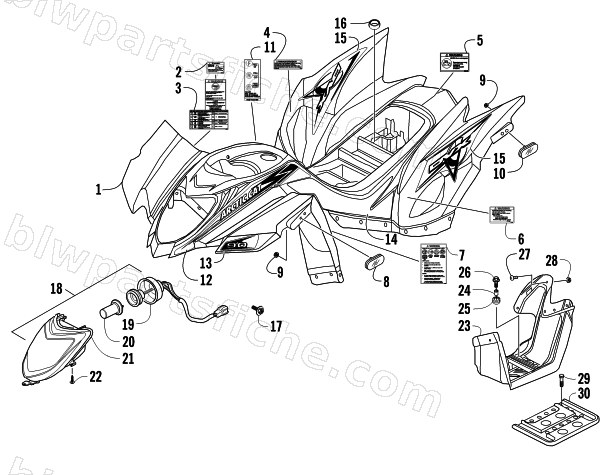

2011 Arctic Cat 90 2X4 DVX — BODY PANEL AND HEADLIGHT ASSEMBLY

2011 90 2X4 DVX

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3306-209	BODY ASSY,MAIN (LIME W/DECALS)	1	$421.95
2	0411-836	DECAL,WARNING HILL (MINI)	1	$82.95
3	2411-136	DECAL,WARNING-RVS/PRE-RIDE/Y12	1	$17.87
4	1411-577	DECAL,WARNING-OFF ROAD ONLY	1	$50.95
5	1411-809	DECAL,WARNING-PASSENGER	1	$3.30
6	1411-938	DECAL,WARNING-TIRE/LOAD (MINI)	1	$12.35
7	1411-932	DECAL,WARNING-GENERAL	1	$12.35
8	3313-359	REFLECTOR,FRONT (OVAL)	1	$13.73
9	3304-774	NUT FLANGE 5MM(G)	1	$0.81
10	3313-360	REFLECTOR,REAR (OVAL)	1	$13.73
11	2411-052	DECAL,SHIFT	1	$17.87
12	2411-472	DECAL,SIDE-UPPER-RH (90 DVX)	1	$24.77
12	2411-473	DECAL,SIDE-UPPER-LH (90 DVX)	1	$24.77
13	2411-496	DECAL,FRONT-LEFT (90 DVX)	1	$19.25
14	2411-474	DECAL,SIDE-LOWER-RH (90 DVX)	1	$42.95
14	2411-475	DECAL,SIDE-LOWER-LH (90 DVX)	1	$42.95
15	2411-476	DECAL,FENDER-REAR-RH (90 DVX)	1	$82.95
15	2411-477	DECAL,FENDER-REAR-LH (90 DVX)	1	$82.95
16	3303-232	RUBBER REAR FENDER	1	$1.92
17	3304-587	BOLT WASHER 6*16	1	$1.23
18	3304-280	LIGHT ASSY R HEAD	1	$203.95
19	3304-282	SOCKET COMP	1	$37.95
20	3303-846	BULB HEAD LIGHT	1	$42.95
21	3304-281	UNIT HEAD LIGHT	1	$180.95
22	3304-650	SCREW TAPPING 5*16 (CIRCLE HEAD)	1	$1.50
23	3306-144	MUDGUARD ASSY R FLOOR	1	$82.95
23	3306-145	MUDGUARD ASSY L FLOOR	1	$82.95
24	3303-233	COLLAR FLOOR	1	$2.33
25	3303-227	RUBBER WIND SCREEN	1	$1.92
26	3304-586	BOLT WASHER 6*20	1	$1.23
27	3305-703	SCREW SPECIAL 6*20	1	$1.78
28	3304-431	NUT LOCK	1	$1.23
29	3304-543	BOLT FLANGE 8*16	1	$1.50
30	3304-494	FOOTREST-RH	1	$37.95
30	3304-495	FOOTREST-LH	1	$37.95
