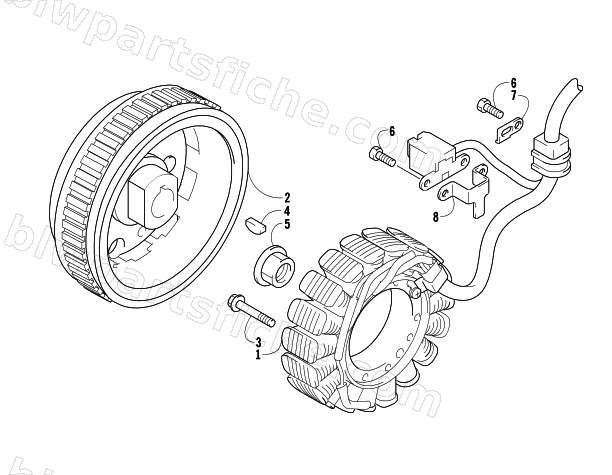

MAGNETO ASSEMBLY
2011 700s TRV CRUISER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0802-041 | STATOR,IGNITION-EFI | 1 | $668.95 | |
| 2 | 0802-048 | ROTOR,IGNITION-EFI (08 700-H1) | 1 | $525.95 | |
| 3 | 0826-102 | SCREW,TSPNH M6X1X30-W/THDLOC | 1 | $1.78 | |
| 4 | 0829-012 | KEY, MAGNETO | 1 | $3.30 | |
| 5 | 0827-014 | NUT,MACH-HEX FLANGE M16X1.5 | 1 | $3.02 | |
| 6 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 0802-015 | CLAMP,STATOR ASSY (NO. 1) | 1 | $4.40 | |
| 8 | 0802-016 | CLAMP,STATOR ASSY (NO. 2) | 1 | $12.95 |
