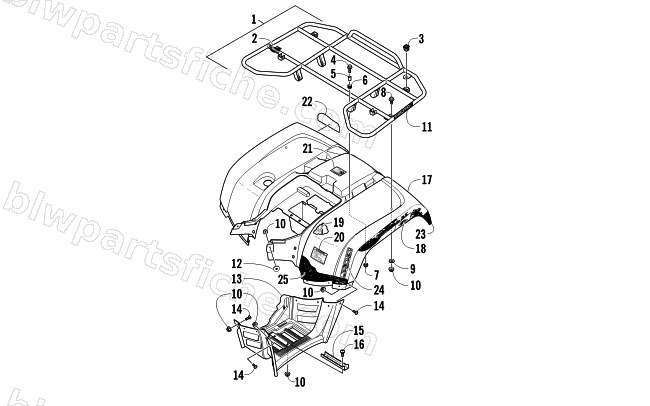

2011 Arctic Cat 700s H1 EFI — REAR RACK, BODY PANEL, AND FOOTWELL ASSEMBLIES
2011 700s H1 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-125 | RACK,REAR W/FENCE-ASSEMBLY | 1 | $405.95 | |
| 2 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 12 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 13 | 1406-356 | FOOTWELL,AUTO-RH | 1 | $105.95 | |
| 13 | 2406-429 | R/B 6406-763 | 1 | $99.95 | |
| 14 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 15 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 16 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 17 | 2516-936 | FENDER,REAR ASSY (NEPTUNE BLUE) | 1 | $919.95 | |
| 17 | 2516-074 | R/B 8506-896 | 1 | $324.95 | |
| 17 | 2516-935 | FENDER,REAR ASSY (ARCTIC ICE) | 1 | $947.95 | |
| 17 | 2516-953 | FENDER,REAR ADV TIM HD-ASSY | 1 | $891.95 | |
| 18 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 18 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 19 | 0470-658 | SHIELD,HEAT-BATTERY BOX | 1 | $2.61 | |
| 20 | 2411-143 | DECAL,TIRE PRESSURE (FIS) | 1 | $3.02 | |
| 21 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 22 | 2411-331 | DECAL,REAR (A-BODY UTILITY) | 1 | $20.95 | |
| 22 | 2411-351 | DECAL,REAR-ARCTIC CAT (A-BODY BLACK) | 1 | $15.11 | |
| 22 | 2411-310 | DECAL,FRT/RR-ARCTIC CAT (A & BBODY CAMO) | 1 | $16.49 | |
| 23 | 2411-340 | DECAL,REAR UPPER SIDE-RH (A-BODY UTLY) | 1 | $15.11 | |
| 23 | 2411-341 | DECAL,REAR UPPER SIDE-LH (A-BODY UTLY) | 1 | $15.11 | |
| 23 | 2411-358 | DECAL,REAR UPR SIDE-RH (A-BODY UTY-BLK | 1 | $15.11 | |
| 23 | 2411-359 | DECAL,REAR UPR SIDE-LH (A-BODY UTY-BLK | 1 | $15.11 | |
| 23 | 2411-348 | DECAL,REAR SIDE-700-RH (A-BODY CAMO) | 1 | $15.11 | |
| 23 | 2411-349 | DECAL,REAR SIDE-700-LH (A-BODY CAMO) | 1 | $15.11 | |
| 24 | 2411-338 | DECAL,REAR SIDE-700-RH (A-BODY UTLY) | 1 | $19.25 | |
| 24 | 2411-339 | DECAL,REAR SIDE-700-LH (A-BODY UTLY) | 1 | $19.25 | |
| 25 | 2411-366 | DECAL,REAR-LWER SIDE-N BLU-RH (A-BODY) | 1 | $29.95 | |
| 25 | 2411-367 | DECAL,REAR-LOWER SIDE-N BLUE-LH (A-BODY) | 1 | $29.95 | |
| 25 | 2411-356 | DECAL,REAR-LOWER SIDE-BLACK-RH (A-BODY) | 1 | $33.95 | |
| 25 | 2411-357 | DECAL,REAR-LOWER SIDE-BLACK-LH (A-BODY) | 1 | $33.95 | |
| 25 | 2411-362 | DECAL,REAR FENDER-LOWER-ARCTIC ICE-RH | 1 | $42.95 | |
| 25 | 2411-363 | DECAL,REAR FENDER-LOWER-ARCTIC ICE-LH | 1 | $42.95 |
