2011 Arctic Cat 700 DIESEL — PISTON SET AND CONNECTING ROD ASSEMBLY
2011 700 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

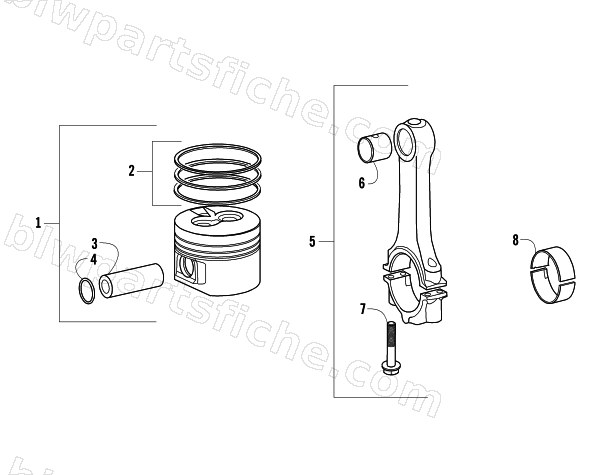

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-026 | PISTON SET STD | 1 | $405.95 | |
| 1 | 3206-027 | PISTON SET +0,50 | 1 | $405.95 | |
| 1 | 3206-028 | PISTON SET +1,00 | 1 | $405.95 | |
| 2 | 3206-023 | RING SET STD. | 1 | $252.95 | |
| 2 | 3206-024 | RING SET +0,50 | 1 | $196.95 | |
| 2 | 3206-025 | RING SET +1,00 | 1 | $196.95 | |
| 3 | 3206-030 | GUDGEON PIN (DIAM.20) | 1 | $64.95 | |
| 4 | 3206-031 | CIRCLIP | 1 | $2.88 | |
| 5 | 3206-035 | CONNECTING ROD | 1 | $573.95 | |
| 6 | 3206-029 | SMALL END BUSHING | 1 | $30.95 | |
| 7 | 3206-036 | BOLT M 8 X 1 X 42 | 1 | $12.35 | |
| 8 | 3206-032 | BIG END BUSHING STD. | 1 | $90.95 | |
| 8 | 3206-033 | BIG END BUSHING -0,25 | 1 | $64.95 | |
| 8 | 3206-034 | BIG END BUSHING -0,50 | 1 | $118.95 |
