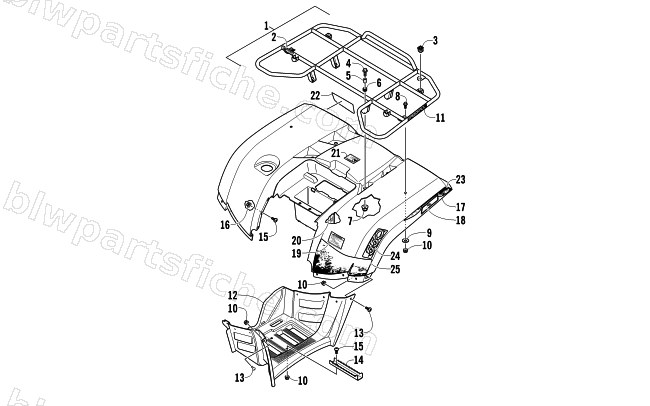

2011 Arctic Cat 550s H1 EFI LTD — REAR RACK, BODY PANEL, AND FOOTWELL ASSEMBLIES
2011 550s H1 EFI LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-124 | RACK,REAR W/FENCE-ASSEMBLY | 1 | $405.95 | |
| 2 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 12 | 2406-280 | FOOTWELL,RH | 1 | $105.95 | |
| 12 | 2406-281 | FOOTWELL,LH | 1 | $101.95 | |
| 13 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 14 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 15 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 16 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 17 | 2516-913 | FENDER,REAR-RTD-ARCTIC ICE-ASSY | 1 | $1,112.95 | |
| 18 | 1411-598 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 18 | 1411-599 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 19 | 2411-143 | DECAL,TIRE PRESSURE (FIS) | 1 | $3.02 | |
| 20 | 0412-351 | HEAT SHIELD,BATTERY BOX | 1 | $4.40 | |
| 21 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 22 | 2411-295 | DECAL,REAR (B-BODY UTILITY) | 1 | $33.95 | |
| 23 | 2411-304 | DECAL,REAR-UPPER SIDE-RH (BB UTLY) | 1 | $15.11 | |
| 23 | 2411-305 | DECAL,REAR UPPER SIDE-LH (BB UTLY) | 1 | $15.11 | |
| 24 | 2411-306 | DECAL,REAR SIDE-550-RH | 1 | $15.11 | |
| 24 | 2411-307 | DECAL,REAR SIDE-550-LH | 1 | $10.97 | |
| 25 | 2411-328 | DECAL,REAR-LOWER SIDE-AC ICE-RH (BB) | 1 | $16.49 | |
| 25 | 2411-329 | DECAL,REAR-LOWER SIDE-AC ICE-LH (BB) | 1 | $16.49 |
