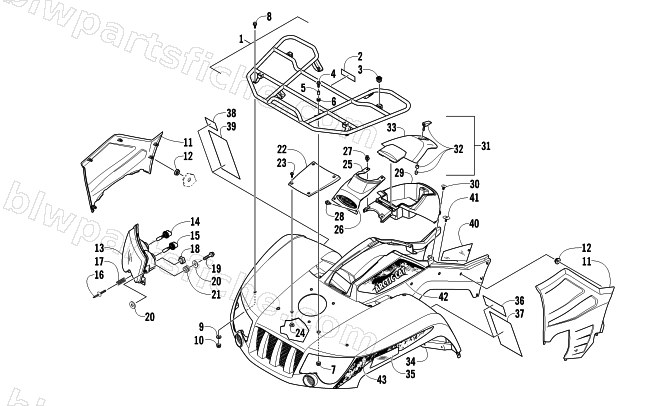

2011 Arctic Cat 550s H1 EFI LTD — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2011 550s H1 EFI LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-646 | RACK,FRONT-ASSEMBLY (W/O FENCE) | 1 | $279.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 2406-380 | PANEL,SIDE-RH(550 H1) | 1 | $66.95 | |
| 11 | 2406-381 | PANEL,SIDE-LH(550 H1) | 1 | $66.95 | |
| 12 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 13 | 0609-852 | HEADLIGHT-ASSY-RH | 1 | $185.95 | |
| 13 | 0609-853 | HEADLIGHT-ASSY-LH | 1 | $185.95 | |
| 14 | 0409-073 | BULB,HEADLIGHT(899) | 1 | $33.95 | |
| 15 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 16 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 17 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 18 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 19 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 22 | 2516-867 | COVER,RADIATOR-ARCTIC ICE-PTD | 1 | $64.95 | |
| 23 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 24 | 0423-997 | NUT,T W/TEETH-M6 | 1 | $0.68 | |
| 25 | 2516-698 | COVER,POST STEERING-M. BLACK-RTD-PTD | 1 | $66.95 | |
| 26 | 2411-330 | DECAL,POWER STEERING | 1 | $13.73 | |
| 27 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 28 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 29 | 2516-721 | BOX,STORAGE-M. BLACK-PTD | 1 | $112.95 | |
| 30 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 31 | 2506-235 | COVER,STORAGE BOX-W/LATCH | 1 | $58.95 | |
| 32 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 33 | 1406-862 | COVER,STORAGE BOX | 1 | $57.95 | |
| 34 | 2516-912 | FENDER,FRONT-ARCTIC ICE-ASSY (B-BODY) | 1 | $969.95 | |
| 35 | 1411-078 | REFLECTOR,FRONT-RH | 1 | $5.37 | |
| 35 | 1411-079 | REFLECTOR,FRONT-LH | 1 | $5.37 | |
| 36 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 37 | 2411-124 | DECAL,WARNING-GENERAL 16 | 1 | $39.95 | |
| 38 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 39 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 40 | 0412-394 | SHIELD,HEAT | 1 | $3.16 | |
| 41 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 42 | 2411-326 | DECAL,SIDE-ARCTIC CAT-RH-AC ICE(BBDY UTY | 1 | $19.25 | |
| 42 | 2411-327 | DECAL,SIDE-ARCTIC CAT-LH-AC ICE(BBDY UTY | 1 | $19.25 | |
| 43 | 2411-302 | DECAL,FRONT SIDE-RH (BB UTLY) | 1 | $20.63 | |
| 43 | 2411-303 | DECAL,FRONT SIDE-LH (BB UTLY) | 1 | $20.63 |
