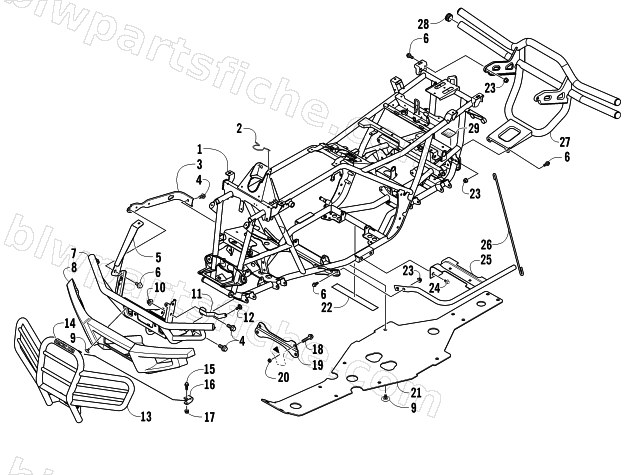

2011 Arctic Cat 550s H1 EFI LTD — FRAME AND RELATED PARTS
2011 550s H1 EFI LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-835 | FRAME,MAIN-BLACK (ATV EPS) | 1 | $1,525.95 | |
| 2 | 2416-401 | CLIP,WIRE HARNESS | 1 | $3.44 | |
| 3 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 4 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 5 | 1506-686 | BRACKET,BUMPER-RH-BLACK | 1 | $26.95 | |
| 5 | 1506-687 | BRACKET,BUMPER-LH-BLACK | 1 | $26.95 | |
| 6 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 1506-684 | BUMPER,FRONT-BLACK | 1 | $208.95 | |
| 8 | 1406-868 | FASCIA,BUMPER-FRONT | 1 | $64.95 | |
| 9 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 10 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 11 | 2516-594 | BRACKET,FENDER SUPPORT-RH-BLACK | 1 | $32.95 | |
| 11 | 2516-595 | BRACKET,FENDER SUPPORT-LH-BLACK | 1 | $32.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 1436-032 | KIT,BUMPER, FRONT DELUXE (B-Body) | 1 | $293.95 | |
| 14 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 15 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 16 | 2506-641 | STRAP,BUMPER SUPPORT-BLACK | 1 | $12.35 | |
| 17 | 8424-805 | NUT,HEX FLG-M8X1.25 CL8 RIE BLK | 1 | $0.95 | |
| 18 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 19 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 20 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 21 | 1406-030 | PANEL,BELLY | 1 | $187.95 | |
| 22 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 23 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 24 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 25 | 1506-659 | FOOTREST,RH-PTD-BLACK | 1 | $79.95 | |
| 25 | 1506-660 | FOOTREST,LH-PTD-BLACK | 1 | $79.95 | |
| 26 | 2506-426 | ROD,SUPPORT-BLACK | 1 | $10.97 | |
| 27 | 1506-802 | BUMPER,REAR-ASSY (LE) | 1 | $248.95 | |
| 28 | 2406-045 | CAP,TUBE-1.375 IN OD | 1 | $3.95 | |
| 29 | 1411-077 | R/B 4411-550 | 1 | $3.95 |
