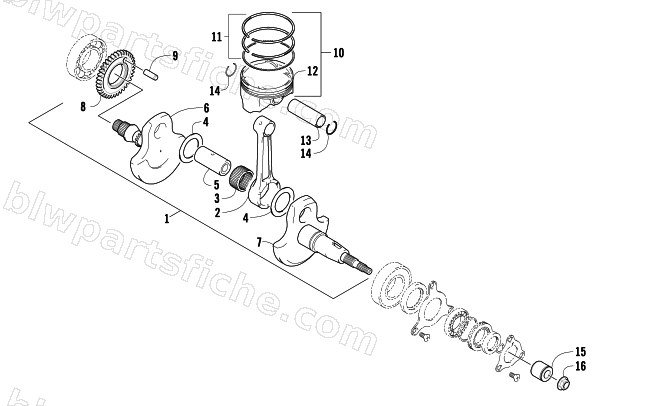

CRANKSHAFT AND PISTON ASSEMBLY
2011 366 SE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0805-013 | CRANKSHAFT ASSEMBLY | 1 | $1,010.95 | |
| 3 | 0832-018 | BEARING | 1 | $163.95 | |
| 4 | 0828-045 | GASKET,PLUG-34.2x52x1 | 1 | $16.49 | |
| 5 | 0805-043 | PIN,CRANK | 1 | $85.95 | |
| 8 | 0805-020 | GEAR, CRANK BALANCER DRIVE | 1 | $144.95 | |
| 9 | 0805-168 | PIN,CRANKSHAFT,RIGHT | 1 | $3.57 | |
| 10 | 0805-169 | PISTON ASSY,366(PISTON,RINGS,C-CLIP,PIN) | 1 | $203.95 | |
| 11 | 0805-170 | RING-SET,PISTON | 1 | $85.95 | |
| 12 | 0805-021 | PISTON | 1 | $148.95 | |
| 13 | 0805-023 | PIN,PISTON | 1 | $37.95 | |
| 14 | 0831-060 | CIRCLIP,PISTON PIN | 1 | $3.02 | |
| 15 | 0820-064 | BUSHING,MAG. COVER OIL SEAL | 1 | $17.87 | |
| 16 | 3303-333 | R/B 3307-058 | 1 | $0.95 |
