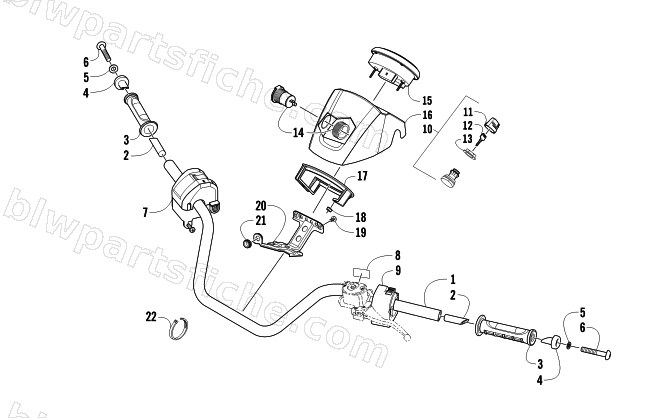

HANDLEBAR ASSEMBLY
2011 350 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-580 | HANDLEBAR,BLACK | 1 | $114.95 | |
| 2 | 0405-148 | R/B 3323-054 | 1 | $18.95 | |
| 3 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 4 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 5 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 6 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 7 | 3303-953 | LEVER ASSY THROTTLE | 1 | $150.95 | |
| 8 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 | |
| 9 | 3313-428 | CONTROL,HANDLE-LEFT(W/ OVERRIDE) | 1 | $148.95 | |
| 10 | 3313-439 | SWITCH,IGNITION-OFF/ON/LIGHTS | 1 | $64.95 | |
| 11 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 12 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 13 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 14 | 3313-468 | OUTLET,ACCESSORY-12V DC | 1 | $33.95 | |
| 15 | 0520-119 | GAUGE,LCD (011 350 FIS) | 1 | $525.95 | |
| 16 | 3306-278 | COVER,HANDLEBAR (BLACK) | 1 | $26.95 | |
| 17 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 18 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 19 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 20 | 3306-277 | STAY,HANDLE COVER | 1 | $16.49 | |
| 21 | 3303-239 | RUBBER TAIL LIGHT | 1 | $1.64 | |
| 22 | 3303-839 | BAND WIRE HARNESS B1 | 1 | $2.33 |
