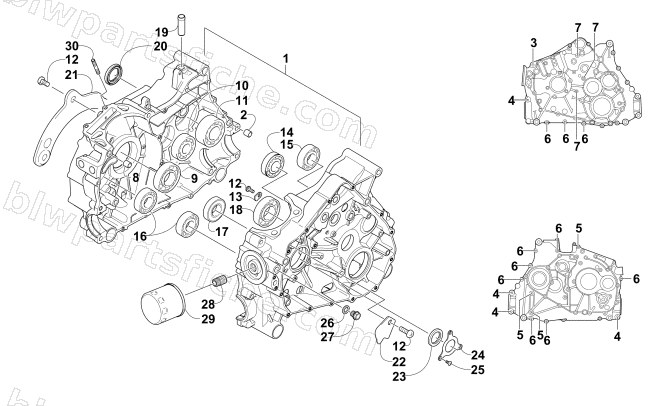

CRANKCASE ASSEMBLY
2011 350 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0801-021 | CRANK CASE COMP RIGHT | 1 | $3,815.95 | |
| 2 | 0829-050 | PIN,DOWEL | 1 | $3.02 | |
| 3 | 3303-372 | BOLT FLANGE 8*60 | 1 | $3.95 | |
| 4 | 0826-126 | BOLT,FLANGE (M8X1.25X50) | 1 | $2.95 | |
| 5 | 0826-064 | ACS SCREW,HFH-M8-1.25x85 | 1 | $5.92 | |
| 6 | 3303-387 | BOLT FLANGE SH 6*45 | 1 | $3.95 | |
| 7 | 0826-065 | ACS SCREW,HFH-M6-1x70 | 1 | $2.33 | |
| 8 | 0829-046 | PIN,DOWEL | 1 | $3.44 | |
| 9 | 0832-087 | BEARING RADIAL BALL 6207-9C3 | 1 | $66.95 | |
| 10 | 3304-198 | BRG BALL RADIAL 6304/20*52*15 | 1 | $26.95 | |
| 11 | 0832-074 | BEARING,BALL, D/R 30 X 62 X 23.8 | 1 | $129.95 | |
| 12 | 0826-144 | SCREW,PPH,M6X1X12 | 1 | $1.50 | |
| 13 | 0822-104 | RETAINER,BEARING | 1 | $2.61 | |
| 14 | 3304-195 | BRG RADIAL BALL 6205 | 1 | $20.63 | |
| 15 | 3304-699 | BRG BALL RADIAL 6204 | 1 | $20.63 | |
| 16 | 0832-022 | BEARING,CONRAD-6204RHR | 1 | $37.95 | |
| 17 | 0832-020 | BEARING,CONRAD-6207 - 35RUEF | 1 | $148.95 | |
| 18 | 0832-019 | BEARING | 1 | $108.95 | |
| 19 | 0801-027 | TUBE,CRANKCASE VENT | 1 | $6.47 | |
| 20 | 0830-066 | SEAL, DRIVESHAFT | 1 | $30.95 | |
| 21 | 0801-018 | PLATE, OIL GUIDE - RIGHT | 1 | $10.97 | |
| 22 | 0801-019 | PLATE, OIL GUIDE - LEFT | 1 | $2.61 | |
| 23 | 0830-058 | SEAL, CRANKSHAFT OIL | 1 | $30.95 | |
| 24 | 0805-018 | RETAINER,CS OIL SEAL- MIDDLE | 1 | $16.49 | |
| 25 | 0826-145 | SCREW,PFH,M6X1X8 | 1 | $1.50 | |
| 26 | 0830-143 | WASHER,COMPRESSION 14 X 19 X 1.35 | 1 | $13.73 | |
| 27 | 0835-004 | PLUG,CASE 12*14 | 1 | $6.47 | |
| 28 | 0812-066 | UNION,OIL FILTER (KY) | 1 | $13.73 | |
| 29 | 0812-034 | FILTER,OIL-(0812-029) | 1 | $16.49 | |
| 30 | 3313-721 | BOLT,STUD M6X1 X 40 | 1 | $1.50 |
