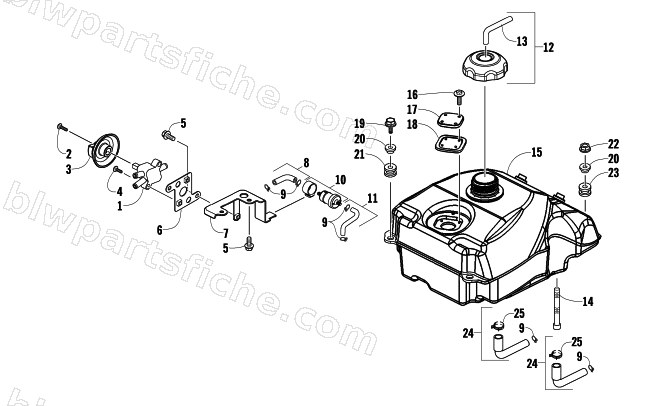

GAS TANK ASSEMBLY
2011 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-700 | R/B 3306-884 | 1 | $29.95 | |
| 2 | 3305-420 | SCREW PAN 4*14 | 1 | $0.81 | |
| 3 | 3303-701 | COVER FUEL COCK | 1 | $2.61 | |
| 4 | 3303-316 | SCREW PAN 5*16 | 1 | $1.09 | |
| 5 | 3304-409 | BOLT WASHER 5*12 | 1 | $0.81 | |
| 6 | 3305-551 | STAY A,FUEL COCK & STRAINER | 1 | $10.97 | |
| 7 | 3305-419 | STAY FUEL COCK & STRAINER | 1 | $16.49 | |
| 8 | 3305-421 | TUBE ASSY FUEL | 1 | $13.73 | |
| 9 | 3303-349 | CLIP B10 TUBE | 1 | $0.95 | |
| 10 | 3305-501 | STRAINER ASSY FUEL | 1 | $33.95 | |
| 11 | 3305-422 | TUBE ASSY FUEL | 1 | $17.87 | |
| 12 | 3305-975 | CAP ASSY FUEL FILLER | 1 | $37.95 | |
| 13 | 3304-169 | TUBE 4.5*360 | 1 | $3.57 | |
| 14 | 3303-058 | SCREEN FUEL STRAINER | 1 | $4.82 | |
| 15 | 3305-415 | R/B 3307-801 | 1 | $513.95 | |
| 16 | 3305-397 | BOLT WASH 5*16 | 1 | $0.81 | |
| 17 | 3305-417 | FUEL UNIT CAP | 1 | $4.82 | |
| 18 | 3305-418 | PACKING FUEL UNIT CAP | 1 | $4.13 | |
| 19 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 | |
| 20 | 3303-226 | COLLAR FR FENDER | 1 | $1.64 | |
| 21 | 3303-406 | RUBBER FUEL TANK | 1 | $3.57 | |
| 22 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 23 | 3304-647 | RR RUBBER FUEL TANK | 1 | $2.06 | |
| 24 | 3305-416 | TUBE ASSY FUEL TANK | 1 | $20.63 | |
| 25 | 3303-351 | CLAMP D13 TUBE | 1 | $1.78 |
