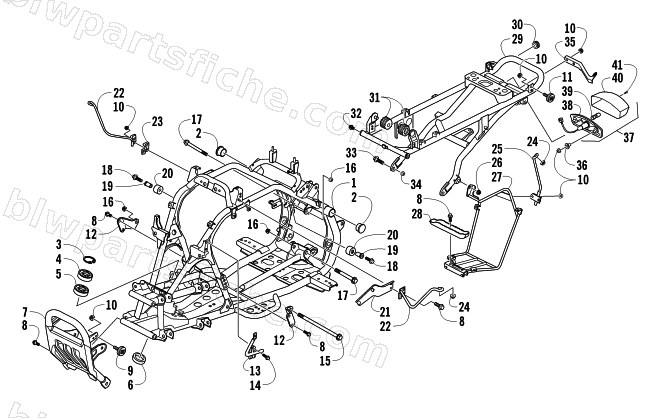

FRAME, TAILLIGHT, AND RELATED PARTS ASSEMBLY
2011 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-338 | BODY COMP FRAME | 1 | $1,546.95 | |
| 2 | 3304-658 | CAP PIPE | 1 | $1.64 | |
| 3 | 3304-150 | CIR CLIP IN 40 | 1 | $2.33 | |
| 4 | 3304-203 | BEARING BALL RADIAL 6203/17*40*12 | 1 | $23.39 | |
| 5 | 3303-298 | OIL SEAL 22*35*7 | 1 | $3.02 | |
| 6 | 3304-064 | DUST SEAL 27*40*6 | 1 | $3.16 | |
| 7 | 3305-270 | PIPE COMP FR BUMPER | 1 | $112.95 | |
| 8 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 9 | 3305-272 | REFLEX REFLECTOR (AMBER) | 1 | $16.49 | |
| 10 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 11 | 3305-273 | REFLEX REFLECTOR (RED) | 1 | $16.49 | |
| 12 | 3303-938 | BRACKET ENG HANGER | 1 | $10.97 | |
| 13 | 3304-352 | STAY R FR FENDER (BLACK) | 1 | $20.63 | |
| 13 | 3304-353 | STAY L FR FENDER | 1 | $20.63 | |
| 14 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 15 | 3304-184 | BOLT FLANGE 10*160 | 1 | $5.51 | |
| 16 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 17 | 3304-183 | SCREW,CAP-HFH M10X1.25X85 | 1 | $2.59 | |
| 18 | 3304-408 | BOLT FLANGE 8*38 | 1 | $1.78 | |
| 19 | 3304-701 | COLLAR CHAIN RUBBER | 1 | $3.71 | |
| 20 | 3304-362 | RUBBER CHAIN DRIVE | 1 | $5.37 | |
| 21 | 3303-935 | STAY CATCH TANK | 1 | $16.49 | |
| 22 | 3304-350 | STAY RH FR FENDER SUPPORT | 1 | $20.63 | |
| 22 | 3304-351 | STAY LH FR FENDER SUPPORT | 1 | $20.63 | |
| 23 | 3303-740 | STAY UNIT RADIATOR | 1 | $5.37 | |
| 24 | 3304-417 | NUT,STAMPED | 1 | $1.23 | |
| 25 | 3304-348 | STAY R RR FENDER SUPPORT | 1 | $16.49 | |
| 25 | 3304-349 | STAY L RR FENDER SUPPORT | 1 | $16.49 | |
| 26 | 3303-332 | NUT FLANGE 8MM | 1 | $0.81 | |
| 27 | 3304-354 | STAY R RR FENDER | 1 | $69.95 | |
| 27 | 3304-356 | STAY L RR FENDER | 1 | $69.95 | |
| 28 | 3304-346 | RNFCT FLOOR | 1 | $20.63 | |
| 29 | 3305-271 | PIPE COMP FRAME RR | 1 | $371.95 | |
| 30 | 3303-239 | RUBBER TAIL LIGHT | 1 | $1.64 | |
| 31 | 3304-245 | CUSHION SEAT | 1 | $3.30 | |
| 32 | 3304-435 | BOLT FLANGE 10*12 | 1 | $1.95 | |
| 33 | 3304-181 | BOLT FLANGE 10*25 | 1 | $1.78 | |
| 34 | 3303-333 | R/B 3307-058 | 1 | $0.95 | |
| 35 | 3304-345 | RR STAY LH REAR FENDER | 1 | $26.95 | |
| 35 | 3304-344 | RR STAY RH REAR FENDER | 1 | $26.95 | |
| 36 | 3303-226 | COLLAR FR FENDER | 1 | $1.64 | |
| 37 | 3303-420 | LIGHT ASSY TAIL | 1 | $74.95 | |
| 38 | 3303-422 | BASE COMP TAIL LIGHT | 1 | $47.95 | |
| 39 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 40 | 3304-283 | LENS COMP TAIL LIGHT | 1 | $47.95 | |
| 41 | 3304-537 | TAPPING SCREW M4X35L | 1 | $2.33 |
