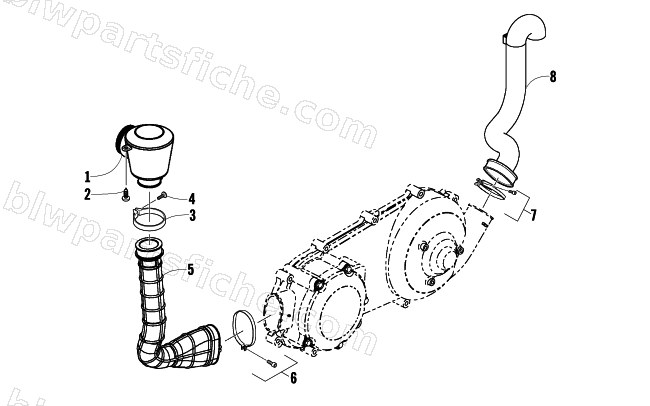

COOLING DUCT ASSEMBLY
2011 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-226 | INLET BOX L COVER | 1 | $47.95 | |
| 2 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 3 | 3304-694 | BAND A CONNECTING TUBE | 1 | $10.97 | |
| 4 | 3304-117 | R/B 3307-221 | 1 | $0.65 | |
| 5 | 3304-224 | DUCT A L COVER | 1 | $47.95 | |
| 6 | 3303-635 | BAND L COVER DUCT | 1 | $5.37 | |
| 7 | 3303-636 | BAND L COVER | 1 | $5.92 | |
| 8 | 3304-223 | DUCT B L COVER | 1 | $64.95 |
