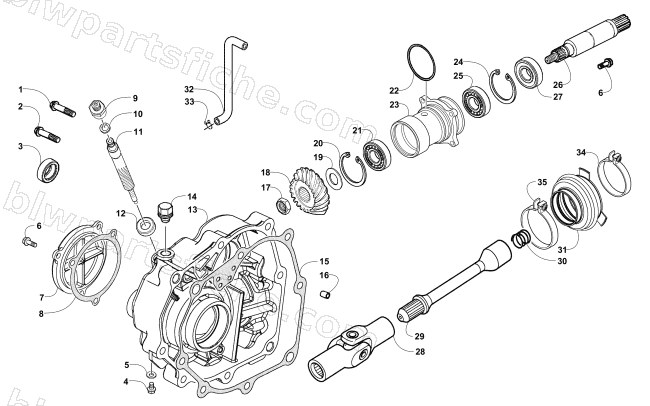

TRANSMISSION CASE ASSEMBLY
2011 300 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-615 | BOLT FLANGE 8*40 | 1 | $1.78 | |
| 2 | 3304-572 | BOLT FLANGE 8*35 | 1 | $2.06 | |
| 3 | 3304-081 | OIL SEAL 14*28*7 | 1 | $2.33 | |
| 4 | 3303-365 | R/B 3304-544 | 1 | $0.95 | |
| 5 | 3303-591 | WASHER 8MM | 1 | $0.81 | |
| 6 | 3303-383 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 7 | 3303-763 | CAP MISSION | 1 | $20.63 | |
| 8 | 3303-766 | GASKET MISSION COVER | 1 | $4.54 | |
| 9 | 3304-108 | R/B 3304-649 | 1 | $2.95 | |
| 10 | 3304-047 | THRUST WASHER 8MM | 1 | $3.57 | |
| 11 | 3303-662 | GEAR TACHOMETER | 1 | $64.95 | |
| 12 | 3304-077 | OIL SEAL 12*18*3 | 1 | $1.78 | |
| 13 | 3303-762 | CASE COMP MISSION | 1 | $244.95 | |
| 14 | 3304-052 | BOLT DRAIN PLUG SPECIAL | 1 | $3.02 | |
| 15 | 3303-765 | GASKET MISSION CASE | 1 | $17.87 | |
| 16 | 3303-342 | PIN DOWEL 10*16 | 1 | $1.64 | |
| 17 | 3304-131 | NUT HEX 16MM | 1 | $1.78 | |
| 18 | 3303-802 | GEAR BEVEL DRIVEN | 1 | $82.95 | |
| 19 | 3304-624 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.6 | 1 | $4.40 | |
| 19 | 3304-625 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.65 | 1 | $4.40 | |
| 19 | 3304-626 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.7 | 1 | $4.40 | |
| 19 | 3304-627 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.75 | 1 | $4.40 | |
| 19 | 3304-628 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.8 | 1 | $4.40 | |
| 19 | 3304-629 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.85 | 1 | $4.40 | |
| 19 | 3304-630 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.9 | 1 | $4.40 | |
| 19 | 3304-631 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.95 | 1 | $4.40 | |
| 19 | 3304-632 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 1.0 | 1 | $4.40 | |
| 19 | 3304-633 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 1.05 | 1 | $4.40 | |
| 19 | 3304-634 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 1.1 | 1 | $4.40 | |
| 19 | 3304-635 | SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 1.15 | 1 | $4.40 | |
| 20 | 3304-151 | CIR CLIP IN 56 | 1 | $6.47 | |
| 21 | 3304-069 | BRG BALL RADIAL 63/22 | 1 | $58.95 | |
| 22 | 3304-105 | O-RING 58*4*3.1 | 1 | $3.44 | |
| 23 | 3303-764 | CASE FINAL SHAFT | 1 | $79.95 | |
| 24 | 3304-152 | CIR CLIP IN 58 | 1 | $10.97 | |
| 25 | 3304-071 | BRG BALL RADIAL 62/28 | 1 | $90.95 | |
| 26 | 3304-642 | SHAFT FINAL | 1 | $82.95 | |
| 27 | 3304-087 | OIL SEAL 28*59*7 | 1 | $20.63 | |
| 28 | 3303-869 | JOINT YORK | 1 | $196.95 | |
| 29 | 3303-868 | SHAFT PROPELLER | 1 | $112.95 | |
| 30 | 3303-870 | SPG PROPELLER SHAFT | 1 | $2.61 | |
| 31 | 3303-945 | BOOT JOINT | 1 | $26.95 | |
| 32 | 3303-630 | TUBE MISSION BREATHER | 1 | $12.35 | |
| 33 | 3304-433 | CLIP B14.5 TUBE | 1 | $1.37 | |
| 34 | 3304-058 | BAND 90 CONNECTING TUBE | 1 | $10.97 | |
| 35 | 3304-059 | BA 66 BOOT | 1 | $10.97 |
