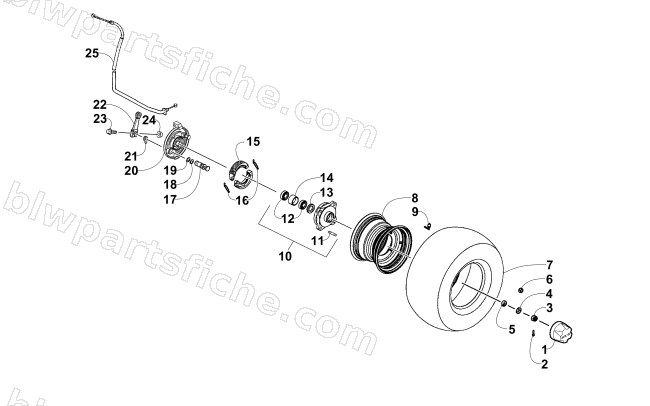

FRONT WHEEL AND BRAKE ASSEMBLIES
2011 150 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-931 | CAP WHEEL | 1 | $10.97 | |
| 2 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 3 | 3303-330 | NUT FLANGE CASTLE 14MM | 1 | $4.54 | |
| 4 | 3305-124 | WASHER 14MM | 1 | $2.33 | |
| 5 | 3305-108 | COLLAR FR WHEEL SIDE | 1 | $3.71 | |
| 6 | 3304-028 | NUT WHEEL | 1 | $2.61 | |
| 7 | 3305-112 | TIRE ASSY FR (KENDA) | 1 | $159.95 | |
| 8 | 3303-902 | RIM COMP FR WHEEL (DARK GRAY) | 1 | $140.95 | |
| 9 | 3304-562 | VALVE RIM (TR412) | 1 | $12.35 | |
| 10 | 3305-109 | HUB ASSY FR | 1 | $112.95 | |
| 11 | 3305-126 | BOLT STUD II 10*21 | 1 | $3.02 | |
| 12 | 3303-468 | BEARING BALL RADIAL 6003/17*35*10 | 1 | $20.63 | |
| 13 | 3303-456 | DUST SEAL 22*35*7 | 1 | $1.78 | |
| 14 | 3305-110 | COLLAR FR DIST | 1 | $6.75 | |
| 15 | 3305-720 | SHOE ASSY FR | 1 | $37.95 | |
| 16 | 3305-116 | SPG BRAKE SHOE | 1 | $1.92 | |
| 17 | 3305-119 | INDICATOR FR BRK | 1 | $1.78 | |
| 18 | 3305-117 | BRAKE CAM DUST SEAL | 1 | $1.92 | |
| 19 | 3305-125 | SEAL OIL 41*51*5 | 1 | $3.02 | |
| 20 | 3305-114 | PANEL COMP FR RH | 1 | $69.95 | |
| 20 | 3305-121 | PANEL COMP FR LH | 1 | $69.95 | |
| 21 | 3305-118 | CAM FR BRAKE | 1 | $17.87 | |
| 22 | 3305-120 | ARM FR BRK RH | 1 | $13.73 | |
| 22 | 3305-122 | ARM FR BRK LH | 1 | $16.49 | |
| 23 | 3303-611 | R/B 3307-214 | 1 | $0.65 | |
| 24 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 25 | 3305-077 | CABLE COMP FR BRK R | 1 | $20.63 | |
| 25 | 3305-079 | CABLE COMP FR BRK L | 1 | $20.63 |
