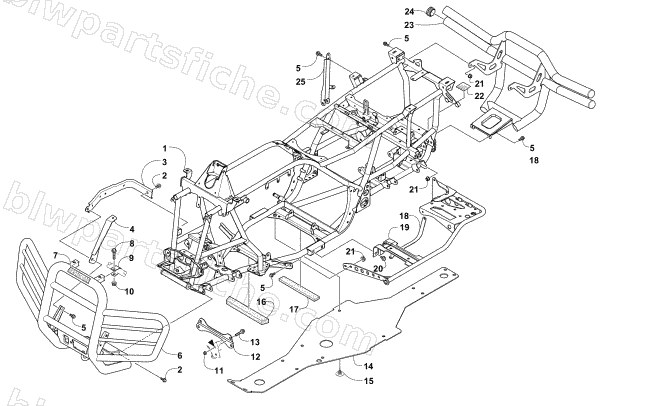

2011 Arctic Cat 1000 H2 EFI MUD PRO — FRAME AND RELATED PARTS
2011 1000 H2 EFI MUD PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-769 | FRAME,MAIN-BLACK | 1 | $1,480.95 | |
| 2 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 3 | 2506-285 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 4 | 1506-562 | BRACKET,BUMPER-RH-BLACK | 1 | $30.95 | |
| 4 | 1506-563 | BRACKET,BUMPER-LH-BLACK | 1 | $30.95 | |
| 5 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 6 | 2506-639 | BUMPER,LE-BLACK (A BODY) | 1 | $341.95 | |
| 7 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 8 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 9 | 2506-641 | STRAP,BUMPER SUPPORT-BLACK | 1 | $12.35 | |
| 10 | 8424-805 | NUT,HEX FLG-M8X1.25 CL8 RIE BLK | 1 | $0.95 | |
| 11 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 12 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 13 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 14 | 2406-718 | PANEL,BELLY | 1 | $163.95 | |
| 15 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 16 | 2506-701 | FOAM,FRAME | 1 | $12.35 | |
| 17 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 18 | 2406-788 | STRAP,FOOTREST SUPPORT-RH | 1 | $20.63 | |
| 18 | 2406-789 | STRAP,FOOTREST SUPPORT-LH | 1 | $20.63 | |
| 19 | 2506-776 | FOOTREST,RH-WELDMENT (TCTRV) | 1 | $156.95 | |
| 19 | 1506-849 | FOOTREST,LH-WELDMENT | 1 | $156.95 | |
| 20 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 21 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 22 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 23 | 0541-435 | BUMPER,REAR-BLACK | 1 | $162.95 | |
| 24 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 | |
| 25 | 2506-447 | BRACKET,FUEL TANK-BLACK | 1 | $25.95 |
