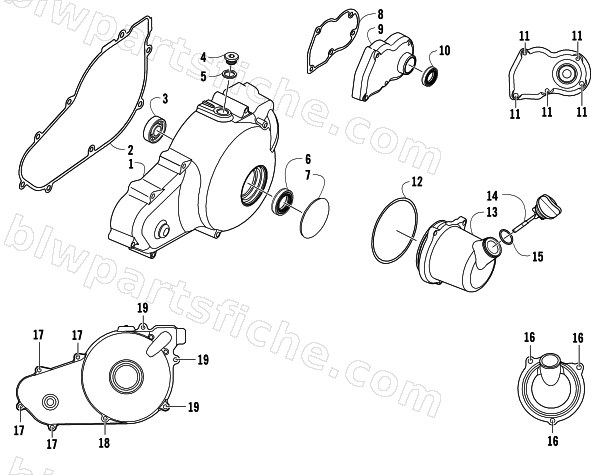

MAGNETO SIDE ENGINE COVERS
2010 TRV 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-151 | COVER,KURT,MAG-MACH | 1 | $133.95 | |
| 2 | 0830-132 | GASKET,MAGNETO COVER,VTWIN | 1 | $12.35 | |
| 3 | 0832-010 | BEARING,CONRAD-SC03A78C3 | 1 | $66.95 | |
| 4 | 0806-022 | PLUG, TDC CHECK | 1 | $38.95 | |
| 5 | 0830-015 | WASHER, CRUSH, 16 x 22 x 2 | 1 | $1.92 | |
| 6 | 0830-176 | SEAL,CAN,47X16X5.5 | 1 | $20.63 | |
| 7 | 0806-066 | CAP,MAGNETO COVER,VTWIN | 1 | $3.57 | |
| 8 | 0830-161 | GASKET,GEAR SHIFT COVER, VTWIN | 1 | $3.02 | |
| 9 | 0818-070 | COVER,GEAR SHIFT,VTWIN-MACH | 1 | $79.95 | |
| 10 | 0830-044 | SEAL, SUB-GEAR SHIFT | 1 | $4.54 | |
| 11 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 12 | 0830-162 | O-RING,OIL FILLER COVER, VTWIN | 1 | $3.02 | |
| 13 | 0801-081 | COVER,OIL FILLER,VTWIN-MACH | 1 | $126.95 | |
| 14 | 0801-073 | STICK,OIL LEVEL | 1 | $26.95 | |
| 15 | 0830-010 | O-RING, 17 ID X 3.2 W | 1 | $3.44 | |
| 16 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 17 | 8468-650 | SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK | 1 | $1.78 | |
| 18 | 8468-695 | SCREW,MACH-TSPNH M6X1.0X95 CL8.8 BLK | 1 | $2.75 | |
| 19 | 8468-665 | SCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLK | 1 | $1.23 |
