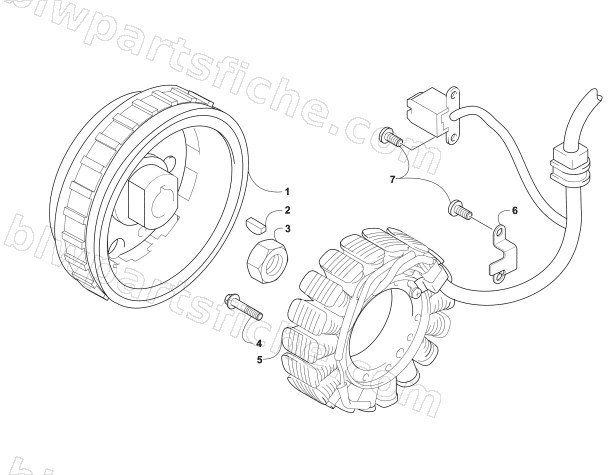

MAGNETO ASSEMBLY
2010 TRV 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0802-042 | ROTOR,IGNITION-EFI (H2 K) | 1 | $386.95 | |
| 2 | 0829-012 | KEY, MAGNETO | 1 | $3.30 | |
| 3 | 0827-076 | NUT,HEX-M20X1.5 Z&C W/SG 2510 (ORG) | 1 | $32.95 | |
| 4 | 0826-102 | SCREW,TSPNH M6X1X30-W/THDLOC | 1 | $1.78 | |
| 5 | 0802-041 | STATOR,IGNITION-EFI | 1 | $668.95 | |
| 6 | 0831-064 | CLAMP,WIRE-STATOR | 1 | $17.87 | |
| 7 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 |
