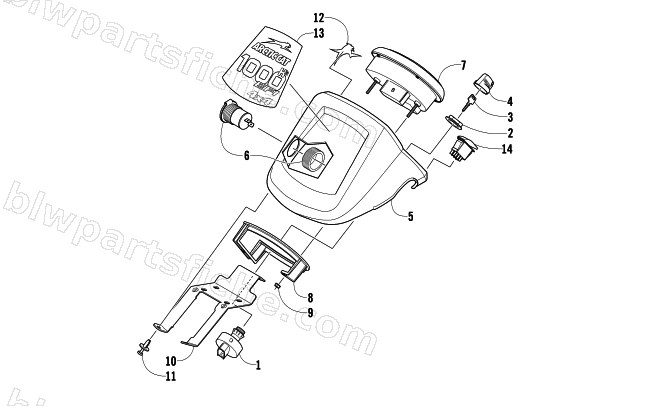

2010 Arctic Cat TRV 1000 CRUISER — INSTRUMENT POD ASSEMBLY
2010 TRV 1000 CRUISER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0430-090 | SWITCH,IGNITION-LIGHTS (09 ATV) | 1 | $66.95 | |
| 2 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 3 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 3 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 4 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 5 | 0505-586 | POD,INSTRUMENT (APPLE GREEN) | 1 | $100.95 | |
| 5 | 0505-596 | POD,INSTRUMENT C.A. RED-PTD | 1 | $100.95 | |
| 6 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 7 | 0520-123 | GAUGE,A/D-CAN (010 H2S CRUISER OS) | 1 | $509.95 | |
| 7 | 0520-122 | GAUGE,A/D-CAN (010 H2S CRUISER) | 1 | $509.95 | |
| 8 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 9 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 10 | 2506-470 | BRKT,MTG GAUGE-PTD | 1 | $26.95 | |
| 11 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 12 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 13 | 1411-843 | DECAL,GRAPHIC-POD(THUNDERCAT TRV) | 1 | $17.87 | |
| 14 | 0409-121 | SWITCH,WARMER-PM (09 CRUISER) | 1 | $82.95 |
