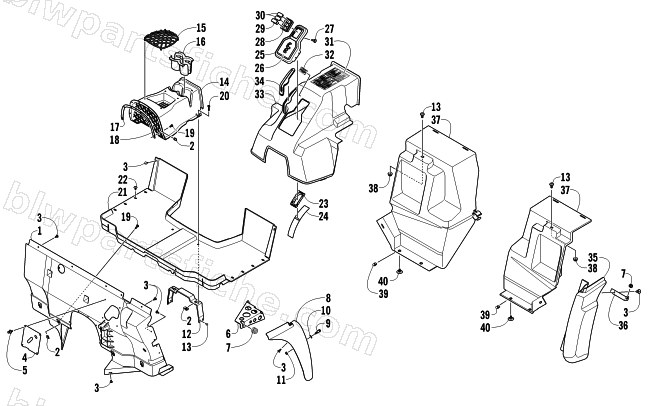

2010 Arctic Cat PROWLER 700 XTX 4X4 — CONSOLE AND FLOOR PANEL ASSEMBLY
2010 PROWLER 700 XTX 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-488 | PANEL,FENDER-INNER-ROUTED (XTX) | 1 | $212.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 4 | 2406-635 | PANEL,SPLASH-INNER FENDER | 1 | $10.97 | |
| 5 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 6 | 2506-066 | BRACKET,SUPPORT-RH-PTD BLK | 1 | $27.95 | |
| 6 | 2506-067 | BRACKET,SUPPORT-LH-PTD BLK | 1 | $27.95 | |
| 7 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 8 | 2516-184 | FENDER,FRONT-RH-APPLE GREEN METALLIC | 1 | $228.95 | |
| 8 | 2516-185 | FENDER,FRONT-LH-APPLE GREEN METALLIC | 1 | $228.95 | |
| 8 | 2516-426 | FENDER,FRONT-RIGHT (A. T. CAMO) | 1 | $262.95 | |
| 8 | 2516-427 | FENDER,FRONT-LEFT (A. T. CAMO) | 1 | $254.95 | |
| 8 | 2506-586 | FENDER,FRONT-RIGHT(BRNT ORG) | 1 | $181.95 | |
| 8 | 2506-587 | FENDER,FRONT-LEFT(BRNT ORG) | 1 | $187.95 | |
| 8 | 2506-716 | FENDER,FRONT RH-GUN METAL BLUE | 1 | $150.95 | |
| 8 | 2506-717 | FENDER,FRONT LH-GUN METAL BLUE | 1 | $150.95 | |
| 9 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 12 | 2516-313 | BRACKET,FLOOR SUPPORT-PAINTED | 1 | $42.95 | |
| 13 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 14 | 2416-081 | TUNNEL,CENTER | 1 | $74.95 | |
| 15 | 2416-111 | NET,STORAGE BOX | 1 | $33.95 | |
| 16 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 17 | 0417-019 | FOAM,TUNNEL-LH | 1 | $12.35 | |
| 18 | 0417-018 | FOAM,TUNNEL-RH | 1 | $12.35 | |
| 19 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 20 | 8468-670 | SCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLK | 1 | $3.02 | |
| 21 | 2416-085 | R/B 5406-460 | 1 | $539.95 | |
| 22 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 23 | 1402-793 | GATE,SHIFT SLIDE | 1 | $8.21 | |
| 24 | 1402-794 | SHIFT SLIDE | 1 | $13.73 | |
| 25 | 1502-520 | GATE,SHIFT-W/DECAL | 1 | $58.95 | |
| 26 | 1411-985 | DECAL,SHIFT GATE | 1 | $20.63 | |
| 27 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 28 | 0409-069 | PANEL,SWITCH MOUNT | 1 | $20.63 | |
| 29 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 30 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 31 | 2411-095 | DECAL,WARNING-CONSOLE | 1 | $23.39 | |
| 32 | 2411-094 | DECAL, BRAKE RELEASE | 1 | $4.95 | |
| 33 | 4406-717 | CONSOLE,CENTER-SHIFT,PARK BRAKE,&TUNNEL | 1 | $341.95 | |
| 34 | 2406-960 | BOOT,PARK BRAKE | 1 | $30.95 | |
| 35 | 2516-196 | FENDER,RR LWR-RH-A GREEN METALLIC (PTD) | 1 | $158.95 | |
| 35 | 2516-197 | FENDER,RR LWR-LH-A GREEN METALLIC (PTD) | 1 | $158.95 | |
| 35 | 2516-432 | FENDER,REAR LOWER-RIGHT (A. T. CAMO) | 1 | $324.95 | |
| 35 | 2516-433 | FENDER,REAR LOWER-LEFT (A. T. CAMO) | 1 | $324.95 | |
| 35 | 2516-008 | FENDER,REAR LOWER-RH-BURNT ORG-PAINTED | 1 | $129.95 | |
| 35 | 2516-009 | FENDER,REAR LOWER-LH-BURNT ORG-PAINTED | 1 | $129.95 | |
| 35 | 2516-012 | FENDER,REAR LOWER-RH-G METAL BLU-PAINTED | 1 | $129.95 | |
| 35 | 2516-013 | FENDER,REAR LOWER-LH-G METAL BLU-PAINTED | 1 | $129.95 | |
| 36 | 2516-326 | BRACKET,LOWER FENDER SUPPORT-BLACK | 1 | $13.73 | |
| 37 | 2416-270 | PANEL,SPLASH-REAR-RH | 1 | $66.95 | |
| 37 | 2416-271 | PANEL,SPLASH-REAR-LH | 1 | $50.95 | |
| 38 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 39 | 0423-466 | CLIP,U-TYPE-TINNERMAN-(D1787-10-4) | 1 | $1.92 | |
| 40 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 |
