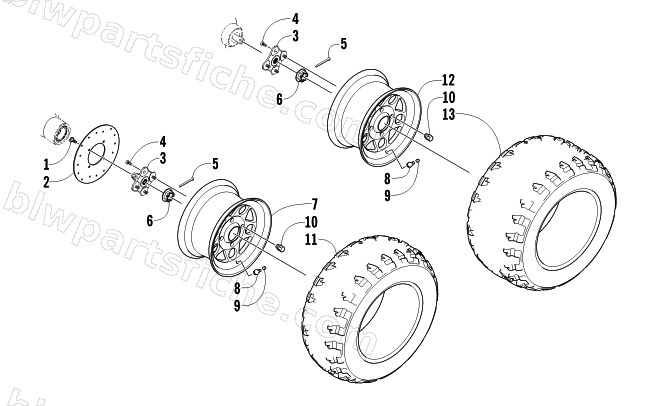

2010 Arctic Cat PROWLER 550 XT 4X4 — WHEEL AND TIRE ASSEMBLY
2010 PROWLER 550 XT 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-418 | KIT,BRAKE DISC (1402-455) | 1 | $56.95 | |
| 3 | 1502-433 | HUB - ASSEMBLY | 1 | $180.95 | |
| 3 | 1502-435 | HUB - ASSEMBLY | 1 | $180.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 1402-732 | WHEEL,FRONT - ALUMINUM (14X6.5) | 1 | $159.95 | |
| 7 | 1402-449 | WHEEL,FRONT-BLACK (14X6.5) | 1 | $182.95 | |
| 7 | 1402-450 | WHEEL,FRONT-RED (14X6.5) | 1 | $188.95 | |
| 7 | 1402-456 | WHEEL,FRONT-MARSH GREEN (14X6.5) | 1 | $164.95 | |
| 7 | 1402-451 | WHEEL,FRONT-LIME (14X6.5) | 1 | $159.95 | |
| 8 | 1402-736 | CAP, CENTER | 1 | $24.77 | |
| 9 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 11 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 12 | 1402-860 | TIRE,DURO RED EAGLE NHS(26X10R14) | 1 | $206.95 | |
| 12 | 1402-452 | WHEEL,REAR-BLACK (14X8.0) | 1 | $159.95 | |
| 12 | 1402-453 | WHEEL,REAR-RED (14X8.0) | 1 | $164.95 | |
| 12 | 1402-457 | WHEEL,REAR-MARSH GREEN (14X8.0) | 1 | $164.95 | |
| 12 | 1402-454 | WHEEL,REAR-LIME (14X8.0) | 1 | $188.95 | |
| 13 | 1402-918 | WHEEL,REAR-ALUMINUM (14X8.0) | 1 | $164.95 |
