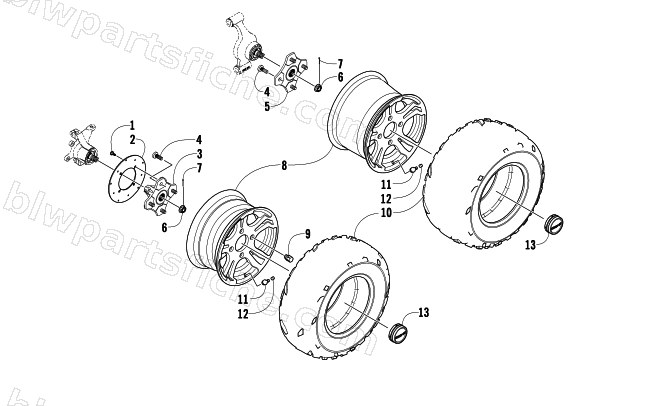

WHEEL AND TIRE ASSEMBLY
2010 700s H1 EFI LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 1502-462 | HUB - ASSEMBLY (W/DISC PEARCH) | 1 | $177.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 1502-464 | HUB,ASSEMBLY (W/O DISC PEARCH) | 1 | $129.95 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 8 | 1402-730 | WHEEL,FRONT- ALUMINUM (12X6.0)(BLACK) | 1 | $160.95 | |
| 8 | 1402-731 | WHEEL,REAR- ALUMINUM (12X7.5)(BLACK) | 1 | $160.95 | |
| 9 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 10 | 1402-894 | TIRE,DURO RED EAGLE AT (RB 2402-250) | 1 | $118.95 | |
| 10 | 1402-895 | TIRE,DURO RED EAGLE AT (RB 2402-251) | 1 | $136.95 | |
| 11 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 13 | 1402-736 | CAP, CENTER | 1 | $24.77 |
