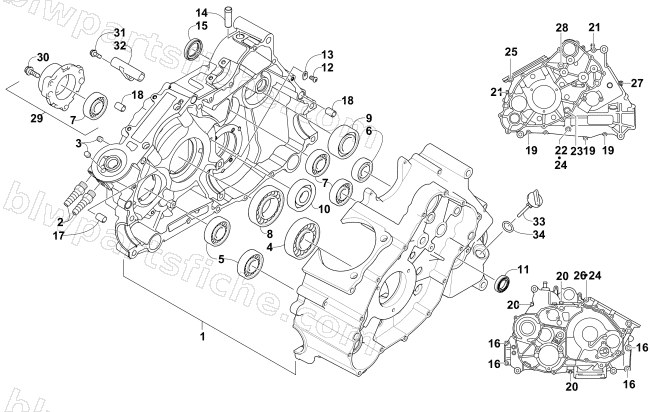

CRANKCASE ASSEMBLY (ENGINE SERIAL NO. 0700AD0010060 AND UP)
2010 700 H1 EFI 4X4 AUTOMATIC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0801-146 | R/B 0801-150 | 1 | $2,122.95 | |
| 2 | 0812-061 | HOSE BARB, MALE, 3/8 X 1/4NPT BRASS | 1 | $6.34 | |
| 3 | 0801-002 | PLUG, ENGINE CASE | 1 | $3.71 | |
| 4 | 0832-043 | BEARING,BALL-S/R 35X80X21 | 1 | $66.95 | |
| 5 | 0832-005 | BEARING,CONRAD-63/22 | 1 | $50.95 | |
| 6 | 0832-049 | BEARING,CONRAD-6204 | 1 | $17.87 | |
| 7 | 0832-050 | BEARING,CONRAD-6304 | 1 | $20.63 | |
| 8 | 0832-042 | BEARING,BALL-S/R 40X80X18 | 1 | $66.95 | |
| 9 | 0832-048 | BEARING,DRIVESHAFT | 1 | $122.95 | |
| 10 | 0832-077 | BEARING,6305-RADIAL (INA) | 1 | $79.95 | |
| 11 | 0822-052 | SEAL, COUNTER SHAFT RH | 1 | $10.97 | |
| 12 | 0826-100 | SCREW,CAP-HSBH M6_1X12 W/ THREAD LOCK | 1 | $0.68 | |
| 13 | 0822-010 | RETAINER, BEARING | 1 | $3.16 | |
| 14 | 0801-028 | PIPE,BREATHER | 1 | $26.95 | |
| 15 | 0830-035 | SEAL, DRIVESHAFT | 1 | $16.49 | |
| 16 | 8412-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 RIE SIL | 1 | $1.92 | |
| 17 | 0829-003 | DOWEL, SPLIT, 11 x 16 | 1 | $10.97 | |
| 18 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 19 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 20 | 8468-655 | SCREW,MACH-TSPNH M6X1.0X55 CL8.8 BLK | 1 | $1.30 | |
| 21 | 8468-675 | SCREW,MACH-TSPNH M6X1.0X75 CL8.8 BLK | 1 | $1.09 | |
| 22 | 8412-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE SIL | 1 | $2.54 | |
| 23 | 0826-017 | SCREW,CAP HFH M8 x 1.25 x 105 | 1 | $6.47 | |
| 24 | 0830-008 | GASKET, COPPER 8X14X1 | 1 | $1.37 | |
| 25 | 0826-019 | SCREW,CAP HFH M8 x 1.25 x 140 | 1 | $10.97 | |
| 26 | 0826-018 | SCREW,CAP HFH M8 x 1.25 x 125 | 1 | $6.34 | |
| 27 | 8468-695 | SCREW,MACH-TSPNH M6X1.0X95 CL8.8 BLK | 1 | $2.75 | |
| 28 | 8468-680 | SCREW,MACH-TSPNH M6X1.0X80 CL8.8 BLK | 1 | $3.02 | |
| 29 | 0801-029 | HOUSING,SECONDARY SHAFT-ASSY | 1 | $231.95 | |
| 30 | 0826-105 | SCREW,CAP-HFH M8 X1.25X35 W/THD LOC | 1 | $1.37 | |
| 31 | 0826-038 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $1.37 | |
| 32 | 0801-069 | PIPE,BREATHER-ASSY | 1 | $50.95 | |
| 33 | 0801-179 | STICK,OIL LEVEL | 1 | $23.39 | |
| 34 | 0830-010 | O-RING, 17 ID X 3.2 W | 1 | $3.44 |
