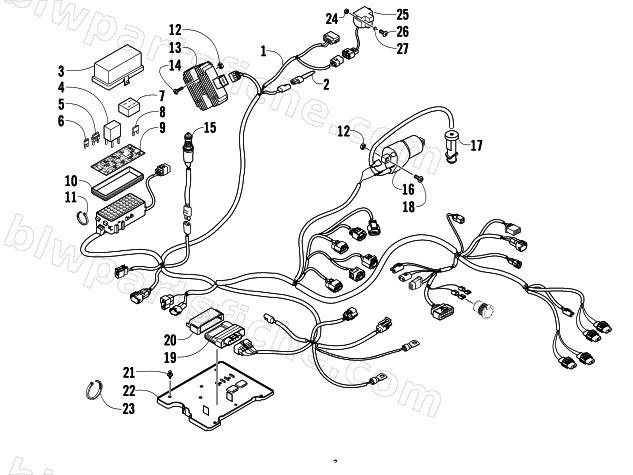

2010 Arctic Cat 700 H1 EFI 4X4 AUTOMATIC MUD PRO — WIRING HARNESS ASSEMBLY
2010 700 H1 EFI 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-328 | HARNESS/DIA,MAIN(010 550/700 H1 MUD PRO) | 1 | $668.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 4 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-100 | CIRCUIT BREAKER,MINI-15A (FAN) | 1 | $12.35 | |
| 7 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 8 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 8 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 8 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 9 | 2411-079 | DECAL,POWER DISTRIBUTION MODULE | 1 | $42.95 | |
| 10 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 13 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 14 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 15 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 16 | 0824-043 | COIL,IGNITION-EFI INDUCTIVE | 1 | $252.95 | |
| 17 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 18 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 19 | 0530-018 | ECU,EFI-H1-PROGRAMMED('09 700 MTMR) | 1 | $687.95 | |
| 20 | 0430-076 | CUSHION,CASE-ECU | 1 | $13.73 | |
| 21 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 22 | 2406-643 | TRAY,ELECTRICAL | 1 | $45.95 | |
| 23 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 24 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 25 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 26 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 27 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 |
