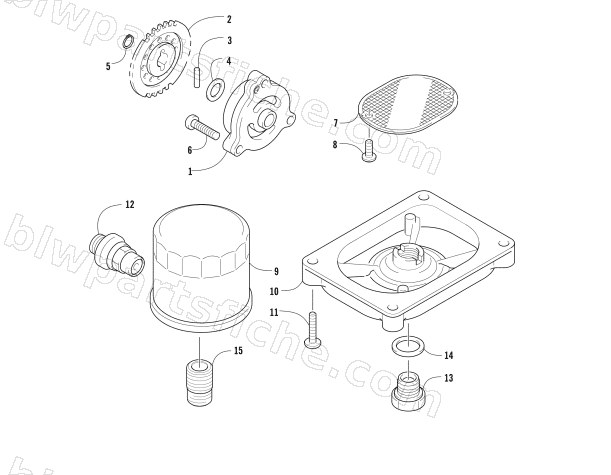

2010 Arctic Cat 700 H1 EFI 4X4 AUTOMATIC MUD PRO — OIL FILTER/PUMP ASSEMBLY (ENGINE SERIAL NO. 0700AD0010060 and Up)
2010 700 H1 EFI 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0812-023 | PUMP, OIL LOW FLOW ASSY | 1 | $100.95 | |
| 2 | 0812-083 | R/B 0812-094 | 1 | $59.95 | |
| 3 | 0829-009 | PIN (4 X 16) | 1 | $2.06 | |
| 4 | 0828-007 | SHIM, 10 x 18 x .57.8x.5 | 1 | $16.49 | |
| 5 | 0831-002 | RING, EXTERNAL RETAINING - DSH-10 | 1 | $0.40 | |
| 6 | 0826-039 | SCREW,MACH-TSPH M6X1X25 W/ THD LOCK | 1 | $1.23 | |
| 7 | 0812-057 | STRAINER,OIL | 1 | $4.40 | |
| 8 | 0826-040 | SCREW,MACH-TSPH M5 X0.8X12 W/ WASHERS | 1 | $1.78 | |
| 9 | 0812-034 | FILTER,OIL-(0812-029) | 1 | $16.49 | |
| 10 | 0812-053 | CAP,OIL SUMP | 1 | $50.95 | |
| 11 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 12 | 0812-007 | VALVE, ASSEMBLY - OIL RELIEF | 1 | $85.95 | |
| 13 | 0812-006 | PLUG, DRAIN MAGNETIC | 1 | $19.25 | |
| 14 | 0830-017 | GASKET, METAL, COMPRESSION | 1 | $5.09 | |
| 15 | 0812-066 | UNION,OIL FILTER (KY) | 1 | $13.73 |
