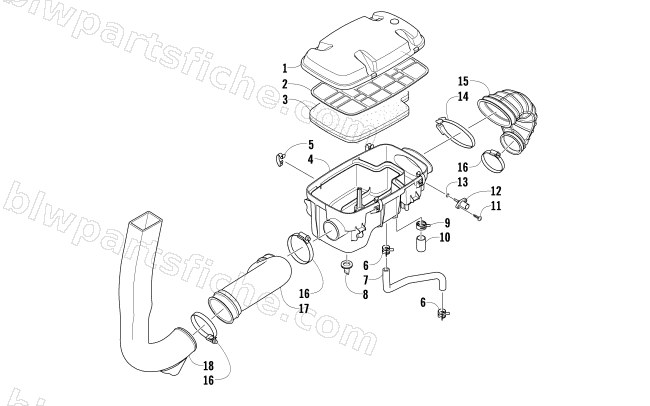

2010 Arctic Cat 700 H1 EFI 4X4 AUTOMATIC MUD PRO — AIR INTAKE ASSEMBLY
2010 700 H1 EFI 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-877 | R/B 1470-221 | 1 | $99.95 | |
| 2 | 0470-560 | SCREEN,AIR FILTER | 1 | $50.95 | |
| 3 | 0470-558 | FILTER,AIR | 1 | $42.95 | |
| 4 | 0470-728 | AIR BOX, BOTTOM - W/INSERTS (EFI) | 1 | $86.95 | |
| 5 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 6 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 7 | 0410-172 | HOSE,VENT-CRANKCASE | 1 | $26.95 | |
| 8 | 0470-858 | VALVE,AIR CLEANER-CLOSED | 1 | $6.34 | |
| 9 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 | |
| 10 | 0423-766 | CAP,DRAIN-AIR BOX | 1 | $2.06 | |
| 11 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 12 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 13 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 14 | 0423-554 | CLAMP,OVAL-( 64x125x15) | 1 | $20.63 | |
| 15 | 0470-511 | BOOT, AIR CLEANER | 1 | $74.95 | |
| 16 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 17 | 0470-529 | BOOT,AIR IN-CARB | 1 | $64.95 | |
| 18 | 0413-210 | DUCT,AIR-IN | 1 | $94.95 |
