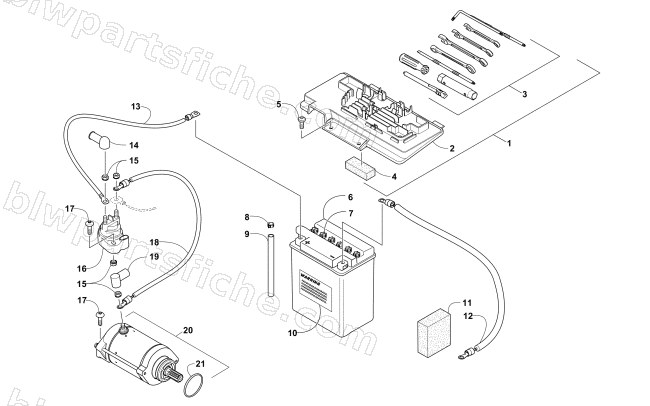

2010 Arctic Cat 650 4X4 AUTOMATIC MUD PRO — BATTERY AND STARTER ASSEMBLY
2010 650 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5993-040 | TRAY,TOOL-ASSY | 1 | $100.95 | |
| 2 | 4406-136 | COVER,BATTERY/TOOL TRAY | 1 | $69.95 | |
| 3 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 4 | 0417-016 | PAD,BATTERY-0.75" | 1 | $2.33 | |
| 5 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 6 | 0745-047 | R/B 0745-423 | 1 | $167.95 | |
| 7 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 8 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 9 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 10 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 11 | 0417-012 | FOAM,BATTERY | 1 | $2.88 | |
| 12 | 0445-063 | CABLE,BATTERY-ENGINE (27" BLK #6) | 1 | $33.95 | |
| 13 | 0445-062 | CABLE,BATTERY-SOLENOID (8.5" RED #6) | 1 | $9.59 | |
| 14 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 17 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 18 | 0445-064 | CABLE,SOLENOID-STARTER (19" RED #6) | 1 | $30.95 | |
| 19 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 20 | 0825-024 | MOTOR,STARTER-ENGINE (PD 11.25) | 1 | $268.95 | |
| 21 | 0830-228 | O-RING,33.5MMX3MM | 1 | $5.09 |
