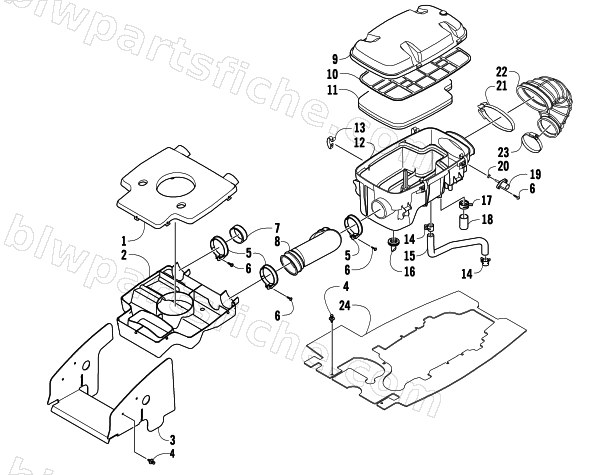

AIR INTAKE ASSEMBLY
2010 550s H1 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-091 | DIVERTER,AIR-IN | 1 | $40.95 | |
| 2 | 0413-093 | DIVERTER,AIR INTAKE-BOTTOM | 1 | $42.95 | |
| 3 | 2406-013 | SHROUD,SPLASH-AIR INTAKE (B BODY) | 1 | $37.95 | |
| 4 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 5 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 6 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 7 | 0413-096 | CAP-AIR IN,BELT | 1 | $20.63 | |
| 8 | 0470-529 | BOOT,AIR IN-CARB | 1 | $64.95 | |
| 9 | 0470-877 | R/B 1470-221 | 1 | $99.95 | |
| 10 | 0470-560 | SCREEN,AIR FILTER | 1 | $50.95 | |
| 11 | 0470-558 | FILTER,AIR | 1 | $42.95 | |
| 12 | 0470-728 | AIR BOX, BOTTOM - W/INSERTS (EFI) | 1 | $86.95 | |
| 13 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 14 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 15 | 0410-172 | HOSE,VENT-CRANKCASE | 1 | $26.95 | |
| 16 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 17 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 | |
| 18 | 0423-766 | CAP,DRAIN-AIR BOX | 1 | $2.06 | |
| 19 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 20 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 21 | 0423-554 | CLAMP,OVAL-( 64x125x15) | 1 | $20.63 | |
| 22 | 0470-511 | BOOT, AIR CLEANER | 1 | $74.95 | |
| 23 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 24 | 2416-150 | PANEL,SHIELD-AIR BOX | 1 | $42.95 |
