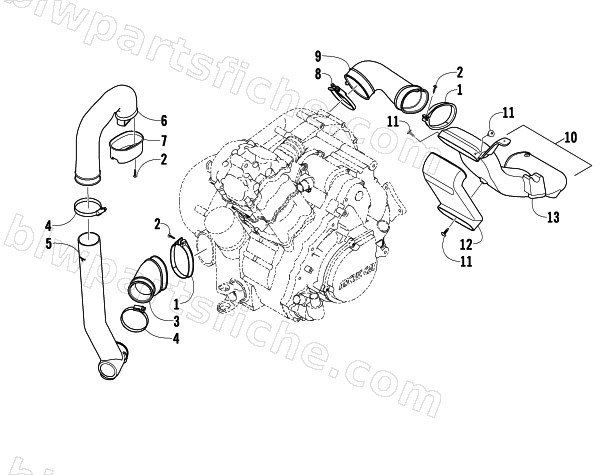

2010 Arctic Cat 550 TRV — CASE/BELT COOLING ASSEMBLY
2010 550 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 2 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 3 | 0413-198 | BOOT,COOLING-BELT | 1 | $30.95 | |
| 4 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 5 | 0513-027 | DUCT,AIR IN-ROUTED | 1 | $56.95 | |
| 6 | 0470-750 | DUCT,CLUTCH AIR INTAKE | 1 | $64.95 | |
| 7 | 0470-729 | CUP,AIR INTAKE | 1 | $12.35 | |
| 8 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 9 | 0413-206 | BOOT,COOLING BELT | 1 | $30.95 | |
| 10 | 0470-824 | DUCT,BELT COOLING-AIR OUT | 1 | $54.95 | |
| 11 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 12 | 0470-778 | DUCT,AIR OUT-SECONDARY | 1 | $50.95 | |
| 13 | 0470-825 | DUCT,AIR OUT-PRIMARY | 1 | $50.95 |
