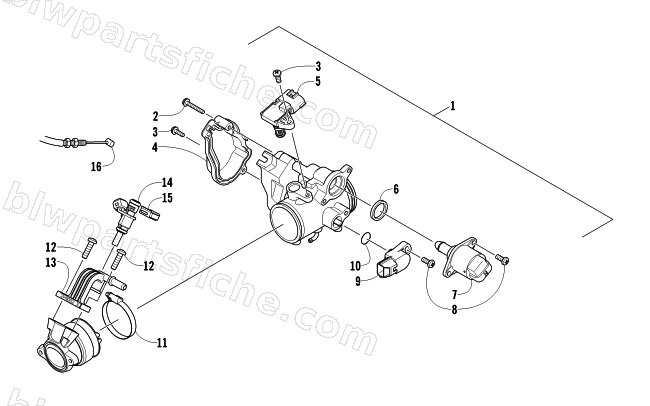

2010 Arctic Cat 450 EFI — THROTTLE BODY ASSEMBLY
2010 450 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-328 | THROTTLE BODY ASSY | 1 | $873.95 | |
| 2 | 0835-006 | SCREW-WASH., 4X30 | 1 | $1.09 | |
| 3 | 0835-007 | SCREW WASHER 4*12 (C) | 1 | $0.85 | |
| 4 | 0824-060 | COVER,WIRE STAY | 1 | $4.26 | |
| 5 | 0824-052 | SENSOR,T-MAP | 1 | $225.95 | |
| 6 | 0832-088 | SEAL,IDLE SPEED ACTUATOR | 1 | $1.78 | |
| 7 | 0824-054 | ACTUATOR,IDLE SPEED (ISA) | 1 | $212.95 | |
| 8 | 3305-953 | SCREW PAN 5*12 (C) (yellow zinc plated) | 1 | $1.09 | |
| 9 | 0824-053 | SENSOR,THROTTLE POSITION (TPS) | 1 | $64.95 | |
| 10 | 3306-150 | O-RING | 1 | $1.50 | |
| 11 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 12 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 13 | 0470-885 | R/B 1470-092 | 1 | $54.95 | |
| 14 | 0470-884 | INJECTOR,SYNERJECT (39-N008) | 1 | $167.95 | |
| 15 | 0470-889 | CLIP,INJECTOR | 1 | $1.78 | |
| 16 | 0487-076 | CABLE,THROTTLE | 1 | $69.95 |
