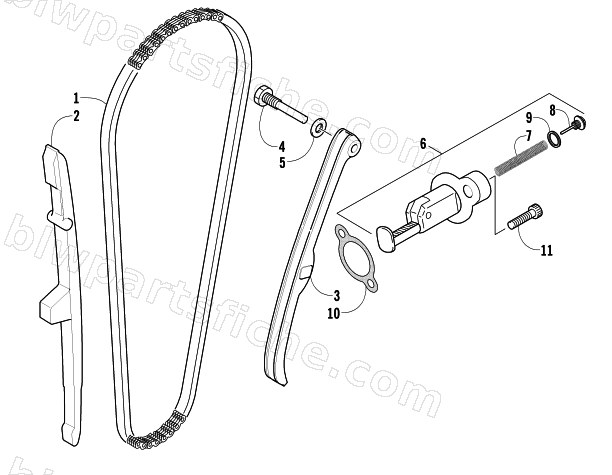

CAM CHAIN ASSEMBLY
2010 400 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0810-005 | R/B 3313-890 | 1 | $122.95 | |
| 2 | 0810-006 | GUIDE, CAM CHAIN | 1 | $100.95 | |
| 3 | 0810-007 | TENSIONER, CAM CHAIN | 1 | $47.95 | |
| 4 | 0826-133 | SCREW,CAP HH SHOULDER-(M8X1.25X40) | 1 | $3.57 | |
| 5 | 0830-150 | WASHER,CRUSH-(12.8 X 8.2 X 1) | 1 | $2.06 | |
| 6 | 0810-054 | ADJUSTER,TENSIONER-ASSY | 1 | $64.95 | |
| 7 | 0810-056 | SPRING,CAM CHAIN ADJUSTER | 1 | $3.02 | |
| 9 | 0810-062 | WASHER,SEALING 10X16X1.6 | 1 | $1.50 | |
| 10 | 0830-060 | GASKET, ADJUSTER | 1 | $3.57 | |
| 11 | 3303-360 | BOLT FLANGE 6*25 | 1 | $0.81 |
