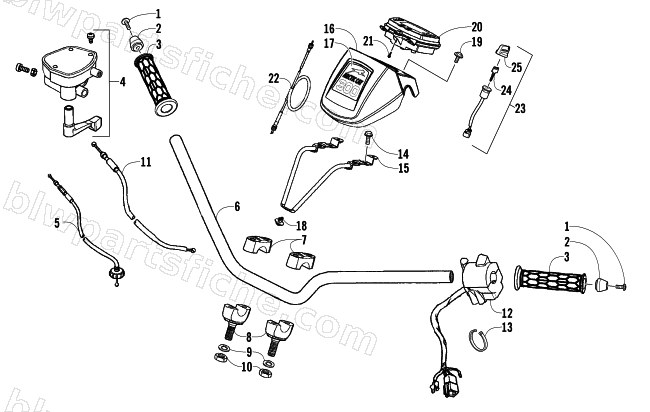

2010 Arctic Cat 300 2X4 UTILITY — HANDLEBAR, INSTRUMENT POD, AND CONTROL ASSEMBLIES
2010 300 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-016 | BOLT WASHER 8MM | 1 | $4.54 | |
| 2 | 3305-541 | END STRG HNDL | 1 | $20.63 | |
| 3 | 3305-905 | GRIP,HANDLE-4040 SPEC | 1 | $13.73 | |
| 4 | 3303-953 | LEVER ASSY THROTTLE | 1 | $150.95 | |
| 5 | 3305-414 | CABLE COMP THROT | 1 | $20.63 | |
| 6 | 3305-457 | HANDLE PIPE STRG-BLACK | 1 | $126.95 | |
| 7 | 3304-954 | NUT FLANGE 14MM | 1 | $3.02 | |
| 8 | 3304-955 | NUT LOCK 16MM | 1 | $0.81 | |
| 9 | 3305-088 | WASHER PLAIN 10MM | 1 | $0.81 | |
| 10 | 3303-325 | NUT HEX 10MM | 1 | $0.81 | |
| 11 | 3305-462 | CABLE COMP CHOKE | 1 | $17.87 | |
| 12 | 3303-852 | SW ASSY LH HANDLE COMP | 1 | $150.95 | |
| 13 | 3303-839 | BAND WIRE HARNESS B1 | 1 | $2.33 | |
| 14 | 3305-400 | BOLT WASHER 8*35 | 1 | $1.23 | |
| 15 | 3303-951 | STAY HANDLE COVER | 1 | $30.95 | |
| 16 | 3303-958 | COVER HANDLE (RED) | 1 | $33.95 | |
| 17 | 2411-204 | DECAL,HANDLE COVER (POD - 300 UTILITY) | 1 | $56.95 | |
| 18 | 3304-552 | CLIP MUDGUARD | 1 | $1.64 | |
| 19 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 20 | 3303-859 | METER ASSY SPDMT | 1 | $235.95 | |
| 21 | 3304-122 | SCREW TAPPING 5*12 use 3304-645 | 1 | $0.55 | |
| 22 | 3303-906 | CABLE COMP SPDMT | 1 | $16.49 | |
| 23 | 3303-850 | IGNITION SWITCH-ASSY | 1 | $58.95 | |
| 24 | 3307-104 | KEY COMP / TJ / R CUT | 1 | $6.89 | |
| 24 | 3304-521 | R/B 3307-105 | 1 | $13.95 | |
| 25 | 3304-522 | KEY COVER-ARCTIC CAT | 1 | $4.13 |
