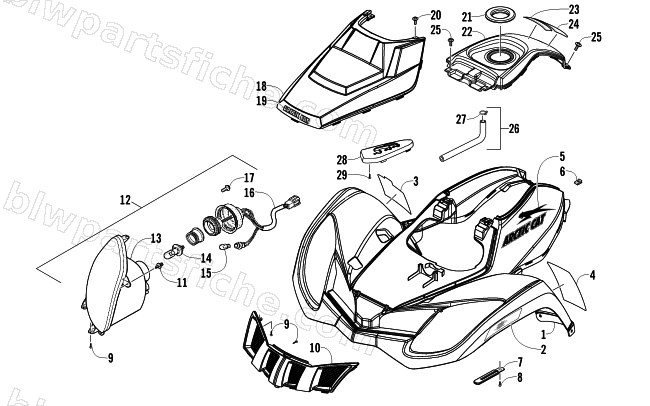

FRONT BODY AND HEADLIGHT ASSEMBLY
2010 300 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-107 | FENDER ASSY,FRONT (RED W/DECALS) | 1 | $253.95 | |
| 2 | 1411-180 | REFLECTOR,FRONT-RH | 1 | $13.73 | |
| 2 | 1411-181 | REFLECTOR,FRONT-LH | 1 | $13.73 | |
| 3 | 1411-173 | DECAL,WARNING-PRE RIDE | 1 | $26.95 | |
| 4 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 5 | 1411-636 | DECAL,SIDE-ARCTIC CAT-RH(50/90/150/250) | 1 | $42.95 | |
| 5 | 1411-637 | DECAL,SIDE-ARCTIC CAT-LH(50/90/150/250) | 1 | $42.95 | |
| 6 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 7 | 3304-156 | CLIP 2*70 | 1 | $1.92 | |
| 8 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 9 | 3304-122 | SCREW TAPPING 5*12 use 3304-645 | 1 | $0.55 | |
| 10 | 3306-688 | GRILL FRONT (RED) | 1 | $20.63 | |
| 11 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 12 | 3303-844 | LIGHT ASSY R HEAD | 1 | $164.95 | |
| 12 | 3303-845 | LIGHT ASSY L HEAD | 1 | $187.95 | |
| 13 | 3304-643 | UNIT HEAD LIGHT RH | 1 | $129.95 | |
| 13 | 3304-644 | UNIT HEAD LIGHT LH | 1 | $174.95 | |
| 14 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 15 | 3303-847 | BULB POSITION LIGHT 12V5W | 1 | $5.65 | |
| 16 | 3305-065 | SOCKET COMP | 1 | $29.95 | |
| 17 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 18 | 3303-978 | COVER FRONT (RED) | 1 | $60.95 | |
| 19 | 1411-825 | DECAL,GRAPHIC-FRONT-CLEAR | 1 | $13.73 | |
| 20 | 3303-263 | BOLT WASH 5*12 **9000 C.97.07.26. | 1 | $0.81 | |
| 21 | 3303-721 | TRAY TANK COVER | 1 | $10.97 | |
| 22 | 3306-108 | COVER TANK(RED) W/DECALS | 1 | $47.95 | |
| 23 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 24 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 25 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 26 | 3303-720 | TUBE ASSY FUEL DRAIN | 1 | $13.73 | |
| 27 | 3303-349 | CLIP B10 TUBE | 1 | $0.95 | |
| 28 | 3303-976 | GUIDE COVER CHANGE HANDLE | 1 | $13.73 | |
| 29 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 |
