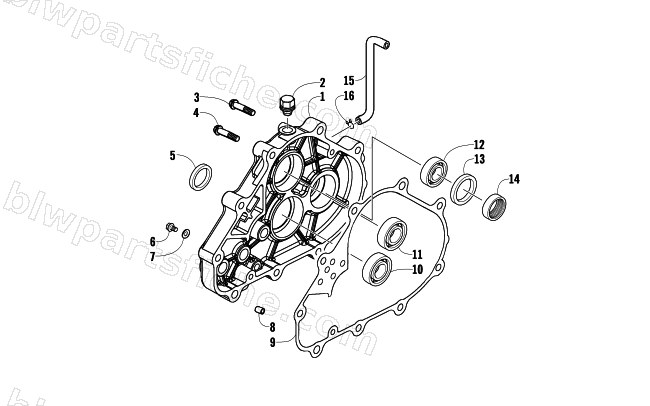

TRANSMISSION CASE ASSEMBLY
2010 300 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-257 | CASE MISSION | 1 | $390.95 | |
| 2 | 3304-052 | BOLT DRAIN PLUG SPECIAL | 1 | $3.02 | |
| 3 | 3303-615 | BOLT FLANGE 8*40 | 1 | $1.78 | |
| 4 | 3304-572 | BOLT FLANGE 8*35 | 1 | $2.06 | |
| 5 | 3304-081 | OIL SEAL 14*28*7 | 1 | $2.33 | |
| 6 | 3303-365 | R/B 3304-544 | 1 | $0.95 | |
| 7 | 3303-591 | WASHER 8MM | 1 | $0.81 | |
| 8 | 3303-342 | PIN DOWEL 10*16 | 1 | $1.64 | |
| 9 | 3304-258 | GASKET MISSION CASE | 1 | $17.87 | |
| 10 | 3304-699 | BRG BALL RADIAL 6204 | 1 | $20.63 | |
| 11 | 3304-198 | BRG BALL RADIAL 6304/20*52*15 | 1 | $26.95 | |
| 12 | 3304-195 | BRG RADIAL BALL 6205 | 1 | $20.63 | |
| 13 | 3304-425 | OIL SEAL 24.8*52.2*7 | 1 | $17.87 | |
| 14 | 3304-422 | BRG NEEDLE 30*42*23 | 1 | $99.95 | |
| 15 | 3303-630 | TUBE MISSION BREATHER | 1 | $12.35 | |
| 16 | 3304-433 | CLIP B14.5 TUBE | 1 | $1.37 |
