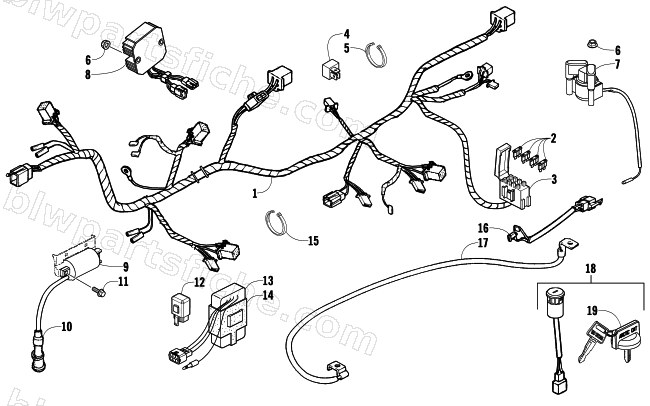

ELECTRICAL AND WIRING HARNESS ASSEMBLY
2010 300 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-276 | HARNESS WIRE | 1 | $235.95 | |
| 2 | 3304-210 | BLADE FUSE 10A | 1 | $4.95 | |
| 2 | 3304-211 | BLADE FUSE 15A | 1 | $4.95 | |
| 2 | 3304-212 | BLADE FUSE 30A | 1 | $4.95 | |
| 3 | 3303-866 | BOX COMP FUSE | 1 | $5.78 | |
| 4 | 3303-837 | RECTIFIER COMP DIODE | 1 | $20.63 | |
| 5 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 | |
| 6 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 7 | 3303-857 | SET START MAG | 1 | $58.95 | |
| 8 | 3304-681 | REG REC COMP | 1 | $129.95 | |
| 9 | 3303-830 | COIL ASSY IGNITION | 1 | $94.95 | |
| 10 | 3305-425 | CAP ASSY NOISE SUPPRESSOR | 1 | $30.95 | |
| 11 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 | |
| 12 | 3305-939 | RELAY ASSY LIGHT | 1 | $42.95 | |
| 13 | 3303-829 | UNIT ASSY IGNITION | 1 | $316.95 | |
| 15 | 3303-840 | BAND WIRE | 1 | $0.55 | |
| 16 | 3303-134 | SUB CORD | 1 | $6.47 | |
| 17 | 3304-278 | CABLE BATTERY | 1 | $20.63 | |
| 18 | 3303-850 | IGNITION SWITCH-ASSY | 1 | $58.95 | |
| 19 | 3304-522 | KEY COVER-ARCTIC CAT | 1 | $4.13 | |
| 19 | 3307-104 | KEY COMP / TJ / R CUT | 1 | $6.89 | |
| 19 | 3304-521 | R/B 3307-105 | 1 | $13.95 |
