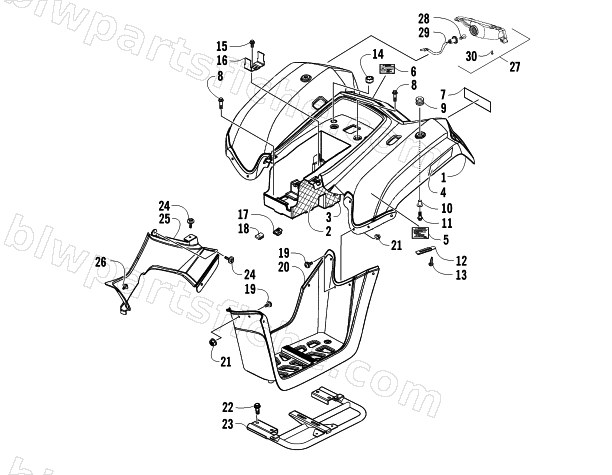

2010 Arctic Cat 150 2X4 UTILITY — REAR BODY PANEL AND TAILLIGHT ASSEMBLIES
2010 150 2X4 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-105 | FENDER REAR (RED) W/DECALS | 1 | $309.95 | |
| 2 | 3305-163 | HEAT GUARD A RR FENDER | 1 | $20.63 | |
| 3 | 3305-164 | HEAT GUARD B RR FENDER | 1 | $10.97 | |
| 4 | 1411-178 | REFLECTOR,REAR-RH | 1 | $13.73 | |
| 4 | 1411-179 | REFLECTOR,REAR-LH | 1 | $13.73 | |
| 5 | 1411-805 | DECAL,WARNING-TIRE/LOAD (250) | 1 | $13.73 | |
| 6 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 7 | 0411-814 | DECAL,"ARCTIC CAT"-WHT | 1 | $50.95 | |
| 8 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 9 | 3303-227 | RUBBER WIND SCREEN | 1 | $1.92 | |
| 10 | 3303-233 | COLLAR FLOOR | 1 | $2.33 | |
| 11 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 12 | 3304-156 | CLIP 2*70 | 1 | $1.92 | |
| 13 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 14 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 15 | 3304-409 | BOLT WASHER 5*12 | 1 | $0.81 | |
| 16 | 3305-238 | BRKT START MAG SW | 1 | $5.37 | |
| 17 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 18 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 19 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 20 | 3305-932 | MUDGUARD,R FLOOR | 1 | $82.95 | |
| 20 | 3305-933 | MUDGUARD,L FLOOR | 1 | $82.95 | |
| 21 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 22 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 23 | 3305-160 | STAY R FLOOR PANEL | 1 | $69.95 | |
| 23 | 3305-161 | STAY L FLOOR PANEL | 1 | $69.95 | |
| 24 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 25 | 3305-934 | COVER,R SIDE | 1 | $33.95 | |
| 25 | 3305-935 | COVER,L SIDE | 1 | $33.95 | |
| 26 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 27 | 3305-732 | LIGHT ASSY TAIL RH | 1 | $94.95 | |
| 27 | 3305-733 | LIGHT ASSY TAIL LH | 1 | $94.95 | |
| 28 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 29 | 3305-217 | SOCKET COMP RR COMB | 1 | $13.73 | |
| 30 | 3304-122 | SCREW TAPPING 5*12 use 3304-645 | 1 | $0.55 |
