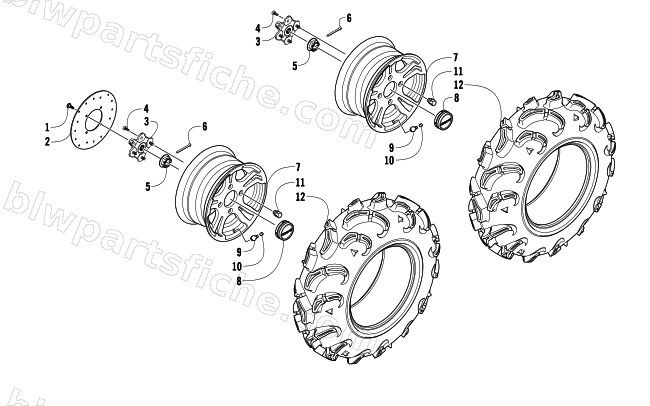

2010 Arctic Cat 1000 4X4 AUTOMATIC MUD PRO — WHEEL AND TIRE ASSEMBLY (VIN: 208323 TO 208411)
2010 1000 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-418 | KIT,BRAKE DISC (1402-455) | 1 | $56.95 | |
| 3 | 1502-437 | HUB - ASSEMBLY | 1 | $180.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 6 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 7 | 1402-732 | WHEEL,FRONT - ALUMINUM (14X6.5) | 1 | $159.95 | |
| 8 | 1402-736 | CAP, CENTER | 1 | $24.77 | |
| 9 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 11 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 12 | 1402-855 | TIRE,MAXXIS ZILLA-28X9X14 | 1 | $219.95 |
