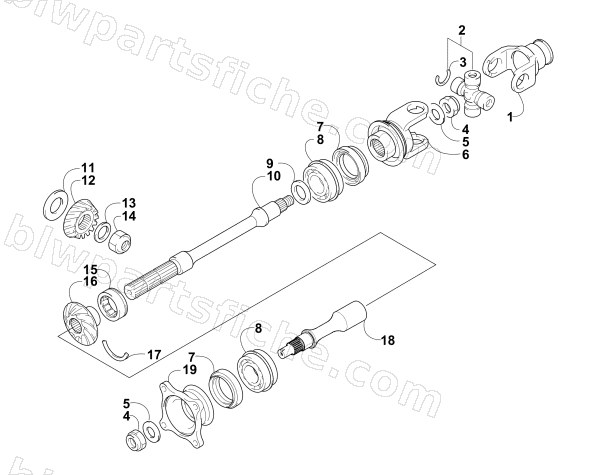

2009 Arctic Cat THUNDERCAT EFI 4X4 AUTO FIS SE — SECONDARY DRIVE ASSEMBLY (ENGINE SERIAL NO. UP TO 0950T10142249)
2009 THUNDERCAT EFI 4X4 AUTO FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0819-063 | YOKE,PROPELLER SHAFT-ASSY | 1 | $66.95 | |
| 2 | 1402-164 | CROSS, UNIVERSAL(20mm)-SET | 1 | $22.01 | |
| 3 | 0423-450 | RING,RETAINING-CROSS | 1 | $3.02 | |
| 4 | 0827-013 | NUT,HEX SHOULDER M16X1.5 | 1 | $3.02 | |
| 5 | 0828-020 | WASHER, STEEL, 16.3 x 30 x 3 | 1 | $3.30 | |
| 6 | 0819-061 | YOKE,DRIVE OUTPUT-FRONT ASSY | 1 | $69.95 | |
| 7 | 0830-043 | SEAL,OIL-DRIVEN SHAFT | 1 | $6.89 | |
| 8 | 0832-017 | R/B 0832-107 | 1 | $125.95 | |
| 9 | 0828-021 | SHIM, 25 x 34 x .25 | 1 | $2.47 | |
| 9 | 0828-022 | SHIM, 25 x 34 x .30 | 1 | $8.21 | |
| 9 | 0828-023 | SHIM, 25 X 34 X 0.35 MM | 1 | $17.87 | |
| 9 | 0828-024 | SHIM,. 25 x 34 x .90 | 1 | $17.87 | |
| 9 | 0828-025 | SHIM, 25 x 34 x .95 | 1 | $17.87 | |
| 9 | 0828-026 | SHIM, 25 x 34 x 1.00 | 1 | $17.87 | |
| 9 | 0828-027 | SHIM, 25 x 34 x 1.05 | 1 | $17.87 | |
| 9 | 0828-028 | SHIM, 25 x 34 x 1.10 | 1 | $16.49 | |
| 9 | 0828-029 | SHIM, 25 x 34 x 1.15 | 1 | $17.87 | |
| 10 | 0819-089 | SHAFT,SECONDARY DRIVEN-FRONT | 1 | $217.95 | |
| 11 | 0828-030 | SHIM, 24 x 48 x .25 | 1 | $4.54 | |
| 11 | 0828-031 | SHIM, 24 x 48 x .30 | 1 | $4.54 | |
| 11 | 0828-032 | SHIM, 24 x 48 x .35 | 1 | $17.87 | |
| 11 | 0828-033 | SHIM, 24 x 48 x .90 | 1 | $5.92 | |
| 11 | 0828-018 | SHIM, 24 x 48 x .95 | 1 | $4.54 | |
| 11 | 0828-062 | SHIM, 24 x 48 x 1.00 | 1 | $17.87 | |
| 11 | 0828-063 | SHIM, 24 x 48 x 1.05 | 1 | $17.87 | |
| 11 | 0828-064 | SHIM, 24 x 48 x 1.10 | 1 | $17.87 | |
| 11 | 0828-065 | SHIM, 24 x 48 x 1.15 | 1 | $19.25 | |
| 12 | 0822-147 | KIT,GEAR SECONDARY-H2 | 1 | $541.95 | |
| 13 | 0828-019 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $8.21 | |
| 14 | 0827-012 | NUT,HEX COLLARED (M20 X1.5 ) | 1 | $20.63 | |
| 15 | 0832-016 | BEARING, DRIVEN GEAR | 1 | $50.95 | |
| 17 | 0819-011 | RING, DRIVEN BEARING | 1 | $17.87 | |
| 18 | 0819-053 | SHAFT, SECONDARY DRIVEN - REAR | 1 | $82.95 | |
| 19 | 0819-005 | FLANGE, OUTPUT JOINT - REAR, ASSEMBLY | 1 | $69.95 |
