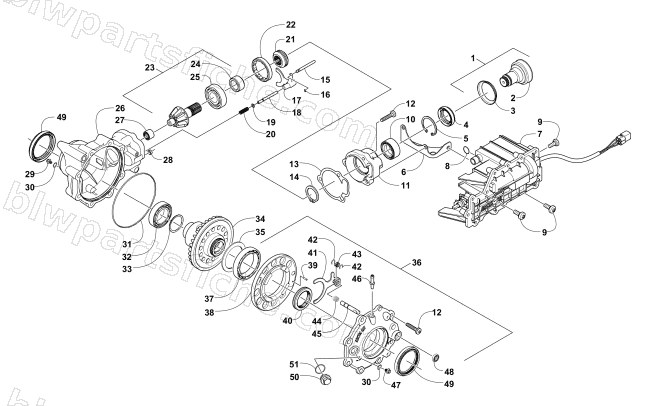

2009 Arctic Cat THUNDERCAT EFI 4X4 AUTO FIS SE — FRONT DRIVE GEARCASE ASSEMBLY
2009 THUNDERCAT EFI 4X4 AUTO FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1502-395 | GEARCASE,FRONT(3.1-H2 ELEC LOCK) | 1 | $2,331.95 | |
| 1 | 0502-923 | SHAFT,INPUT-ASSEMBLY | 1 | $86.95 | |
| 2 | 1402-438 | SHAFT,INPUT | 1 | $86.95 | |
| 3 | 1402-168 | DEFLECTOR | 1 | $20.63 | |
| 4 | 1402-011 | SEAL | 1 | $5.51 | |
| 5 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 6 | 1502-237 | BRACKET,ACTUATOR-WELD'T | 1 | $45.95 | |
| 7 | 2502-194 | ACTUATOR,ELEC LOCK | 1 | $454.95 | |
| 8 | 1402-981 | O-RING,ACTUATOR-FRONT GEARCASE | 1 | $0.68 | |
| 9 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 10 | 1402-043 | BEARING, BALL - DOUBLE ROW | 1 | $69.95 | |
| 11 | 0502-528 | HOUSING,PINION-MACH | 1 | $180.95 | |
| 12 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 13 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 14 | 0423-417 | RING,RETAINING-EXT 30 | 1 | $8.21 | |
| 15 | 0402-997 | PUSHROD,SELECTOR | 1 | $66.95 | |
| 16 | 0423-402 | RING,RETAINING-4MM EXT. | 1 | $3.16 | |
| 17 | 0402-998 | FORK,SELECTOR | 1 | $82.95 | |
| 18 | 0402-417 | SHAFT,SHUTTLE | 1 | $20.63 | |
| 19 | 0423-147 | O-RING,3X 2MM | 1 | $1.50 | |
| 20 | 0402-999 | SPRING,RETURN-4WD | 1 | $1.78 | |
| 21 | 0402-413 | COUPLER,DRIVE | 1 | $66.95 | |
| 22 | 0402-357 | COLLAR,LOCKING (M64-1.5 RH) | 1 | $50.95 | |
| 23 | 0502-784 | PINION-ASSY (11T) | 1 | $212.95 | |
| 24 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 25 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 26 | 0502-514 | HOUSING, GEARCASE - MACHINED | 1 | $248.95 | |
| 27 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 28 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 29 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 30 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 31 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 32 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 33 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 33 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 33 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 33 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 33 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 34 | 1502-554 | GEAR (34T 3.1 LOCK LSD)-WELDT | 1 | $679.95 | |
| 35 | 1402-074 | SHIM, 1.3 | 1 | $30.95 | |
| 35 | 1402-075 | SHIM, 1.4 | 1 | $30.95 | |
| 35 | 1402-076 | SHIM, 1.5 | 1 | $30.95 | |
| 35 | 1402-077 | SHIM, 1.6 | 1 | $30.95 | |
| 35 | 1402-078 | SHIM, 1.7 | 1 | $30.95 | |
| 36 | 1502-389 | COVER,E-LOCKER-ASSEMBLY | 1 | $599.95 | |
| 37 | 1402-053 | BEARING, BALL (6912 C3) | 1 | $118.95 | |
| 38 | 0502-413 | FLANGE,BEARING-MACH | 1 | $102.95 | |
| 39 | 1402-079 | PIN, PARALLEL | 1 | $1.78 | |
| 40 | 1402-042 | COLLAR, SLIDING - LOCK | 1 | $100.95 | |
| 41 | 1402-054 | FORK | 1 | $69.95 | |
| 42 | 1402-058 | RING, RETAINING | 1 | $9.59 | |
| 43 | 1402-057 | SPRING | 1 | $20.63 | |
| 44 | 1402-063 | SPRING | 1 | $3.02 | |
| 45 | 1402-656 | SHAFT,LOCK | 1 | $37.95 | |
| 46 | 1402-104 | BARB, STRAIGHT | 1 | $50.95 | |
| 47 | 1402-211 | PLUG, OIL LEVEL | 1 | $20.63 | |
| 48 | 1402-056 | SEAL | 1 | $20.63 | |
| 49 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 50 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 51 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 |
