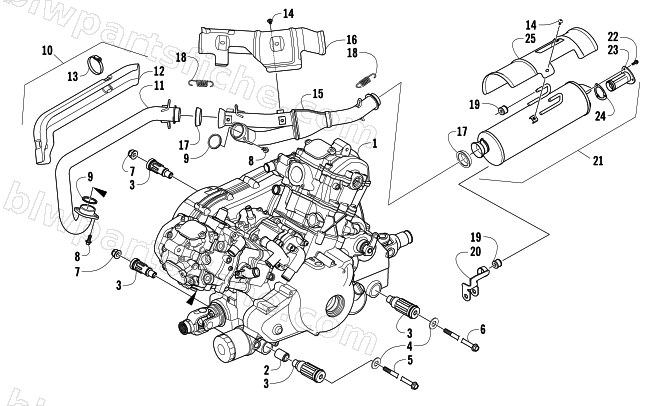

2009 Arctic Cat THUNDERCAT EFI 4X4 AUTO FIS SE — ENGINE AND EXHAUST
2009 THUNDERCAT EFI 4X4 AUTO FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0800-097 | R/B 0800-183 | 1 | $7,555.95 | |
| 2 | 0801-128 | SPACER,ENGINE MOUNT,L31 | 1 | $13.73 | |
| 3 | 0801-091 | MOUNT,RUBBER-ENGINE | 1 | $37.95 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-734 | SCREW,CAP HFH M10-1.25X220 | 1 | $22.01 | |
| 6 | 0423-451 | SCREW,CAP-HFH M10X1.25X190 CL10.9 Z&Y | 1 | $5.95 | |
| 7 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 8 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 9 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 10 | 0512-433 | PIPE,EXHAUST-ASSEMBLY | 1 | $357.95 | |
| 11 | 0512-349 | PIPE,EXHAUST-BLACK(FRONT) | 1 | $196.95 | |
| 12 | 0412-400 | SHIELD,EXHAUST-INNER | 1 | $136.95 | |
| 13 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 14 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 15 | 0512-477 | PIPE,EXHAUST-BLACK(REAR) | 1 | $239.95 | |
| 16 | 0412-403 | SHIELD,EXHAUST-REAR | 1 | $74.95 | |
| 17 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 18 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 19 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 20 | 2506-631 | CHANNEL,MUFFLER SUPPORT-BLK | 1 | $23.39 | |
| 21 | 0512-355 | MUFFLER-PAINTED | 1 | $509.95 | |
| 22 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 23 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 24 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
| 25 | 0412-373 | COVER,MUFFLER | 1 | $45.95 | |
| 26 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 |
