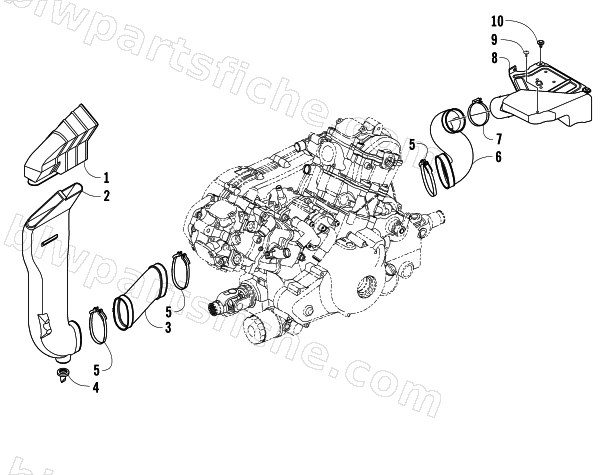

2009 Arctic Cat THUNDERCAT EFI 4X4 AUTO FIS SE — CASE/BELT COOLING ASSEMBLY
2009 THUNDERCAT EFI 4X4 AUTO FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-137 | SHROUD,AIR IN-BELT | 1 | $64.95 | |
| 2 | 0413-138 | DUCT,COOLING-BELT IN | 1 | $69.95 | |
| 3 | 0413-139 | BOOT,COOLING-BELT IN | 1 | $23.39 | |
| 4 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 5 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 6 | 0413-135 | BOOT,COOLING-BELT OUT | 1 | $97.95 | |
| 7 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 8 | 0413-194 | DUCT,COOLING-BELT OUT | 1 | $55.95 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 |
