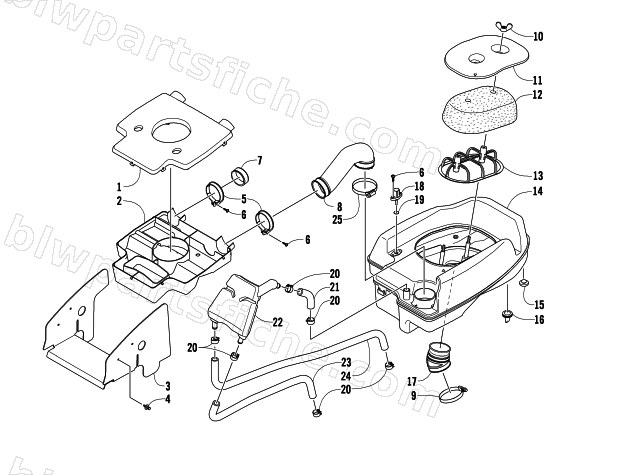

2009 Arctic Cat THUNDERCAT EFI 4X4 AUTO FIS SE — AIR INTAKE ASSEMBLY
2009 THUNDERCAT EFI 4X4 AUTO FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-091 | DIVERTER,AIR-IN | 1 | $40.95 | |
| 2 | 0413-093 | DIVERTER,AIR INTAKE-BOTTOM | 1 | $42.95 | |
| 3 | 2406-509 | SHROUD,SPLASH | 1 | $37.95 | |
| 4 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 5 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 6 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 7 | 0413-096 | CAP-AIR IN,BELT | 1 | $20.63 | |
| 8 | 0470-583 | BOOT,AIR IN-AIR BOX | 1 | $58.95 | |
| 9 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 10 | 0423-716 | WINGNUT,NYLOC-M6X1.0 | 1 | $3.85 | |
| 11 | 0470-832 | LID,AIR BOX-FABRICATED | 1 | $42.95 | |
| 12 | 0470-828 | FILTER,AIR | 1 | $47.95 | |
| 13 | 0470-731 | CAGE,AIR FILTER | 1 | $49.95 | |
| 14 | 0570-221 | AIR BOX,BOTTOM & TOP-EMAWELD | 1 | $256.95 | |
| 15 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 16 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 17 | 0470-638 | BOOT,THROTTLE BODY | 1 | $20.63 | |
| 18 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 19 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 20 | 1623-285 | CLAMP,HOSE-SPRING (12W X 22) | 1 | $2.88 | |
| 21 | 0410-152 | HOSE,OIL SEPERATOR | 1 | $35.95 | |
| 22 | 0470-718 | TANK,SEPARATOR | 1 | $64.95 | |
| 23 | 0410-150 | HOSE,CRANKCASE VENT #1 | 1 | $76.95 | |
| 24 | 0410-151 | HOSE,CRANKCASE VENT #2 | 1 | $106.95 | |
| 25 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 |
